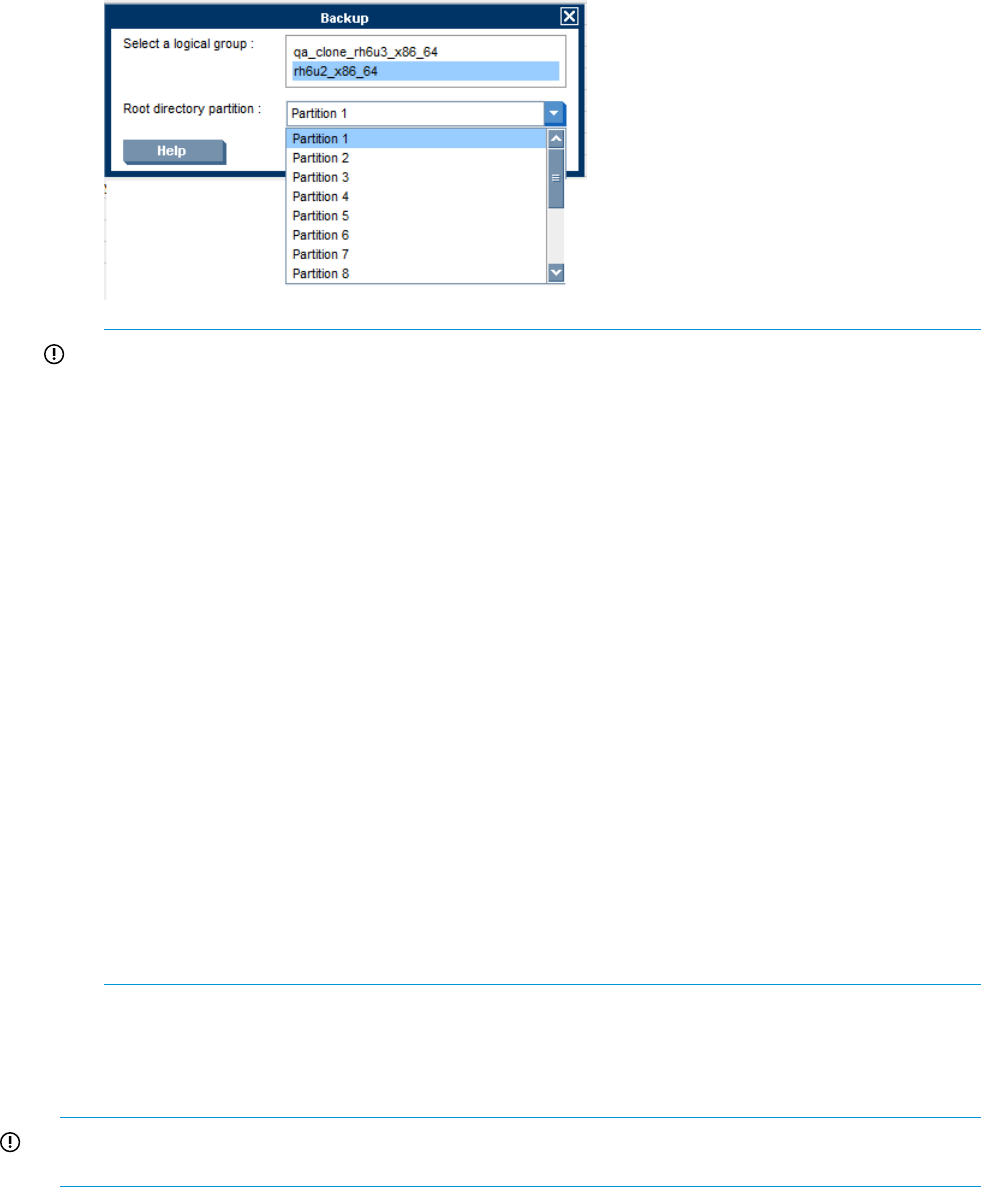

Figure 20 Backup dialog box
IMPORTANT: When backing up a Windows golden node (supported only on specific
Moonshot cartridges):
• The backup image size (the total size of the compressed part-archi*.tar.bz2 files)
must be <85% of RAM size on the nodes to be cloned. For example, on nodes with 8GB
RAM, the maximum image size available for cloning is approximately 7GB.
• Ensure that the root partition number is correct. Root partition is the partition containing
the Windows system folder. Verify by running the diskpart command at the Windows
command prompt:
c:\>diskpart
Microsoft DiskPart version 6.1.7601
Copyright (C) 1999-2008 Microsoft Corporation.
On computer: SMITH1
DISKPART> list disk
Disk ### Status Size Free Dyn Gpt
-------- ------------- ------- ------- --- ---
Disk 0 Online 465 GB 0 B
DISKPART> select disk 0
Disk 0 is now the selected disk.
DISKPART> list partition
Partition ### Type Size Offset
------------- ---------------- ------- -------
Partition 1 Primary 465 GB 1024 KB
A window displays the existing logical groups and the proposes a list of root directory
partitions. The OK button is enabled after a logical group and a root partition are selected
from the respective lists.
5. Click OK to launch the backup of the selected node with the chosen options.
IMPORTANT: HP Insight CMU only supports Ext2, Ext3, Ext4, FAT, XFS, and Reiserfs file systems
on the Linux partitions for backup.
After you click OK, the backup process starts. If the node to be backed up is linked to a management
card, you will be prompted to enter the management card login and password.
5.3 Backing up 59
