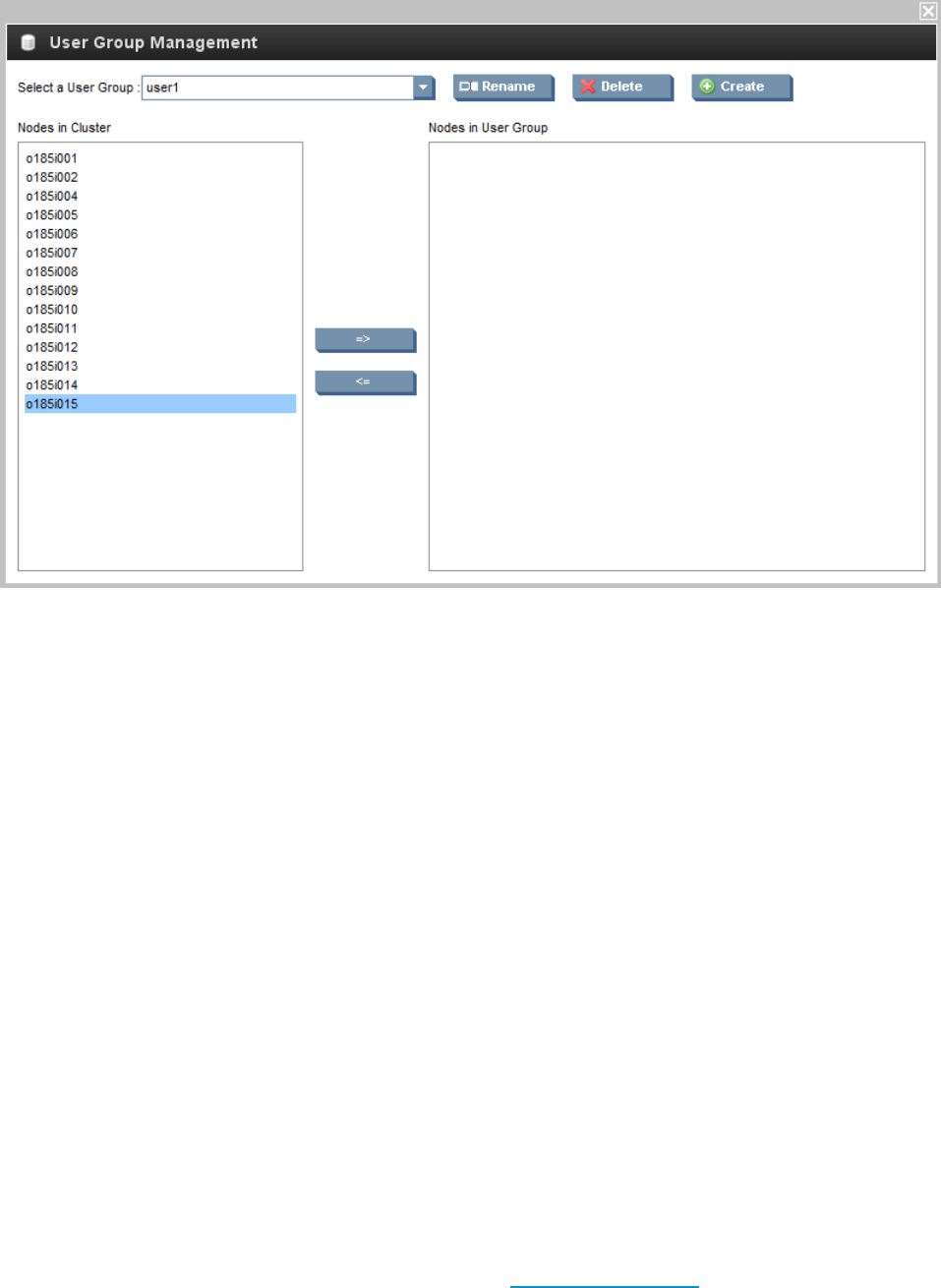

Figure 62 User group management
Select any number of nodes from the list of “Nodes in Cluster” on the left and use the arrows to
move the nodes to the list of “Nodes in User Group” on the right.
7.14.2 Deleting user groups
1. In the User Group Management window, select the user group to delete.
2. Click Delete.
3. Click OK.
7.14.3 Renaming user groups
1. In the User Group Management window, select the user group to rename.
2. Click Rename.
3. Enter the new name.
4. Click OK.
7.15 HP Insight firmware management
HP Insight CMU provides support for managing your firmware. You can view and compare BIOS
settings and BIOS firmware versions across a set of chosen nodes. This functionality helps you
confirm that your cluster is configured correctly and consistently. HP Insight CMU also provides
the ability to run a firmware executable on a set of nodes to upgrade your firmware to the latest
version available. This ensures that your cluster hardware is performing efficiently and consistently.
7.15.1 Viewing and analyzing BIOS settings
Use the HP Insight conrep tool to extract BIOS settings from each node to a file. The conrep tool
is freely available from the Support & Drivers link from http://www.hp.com on most HP servers.
It can be found separately or packaged within the Smart-Start Scripting Tool Kit (SSSTK).
