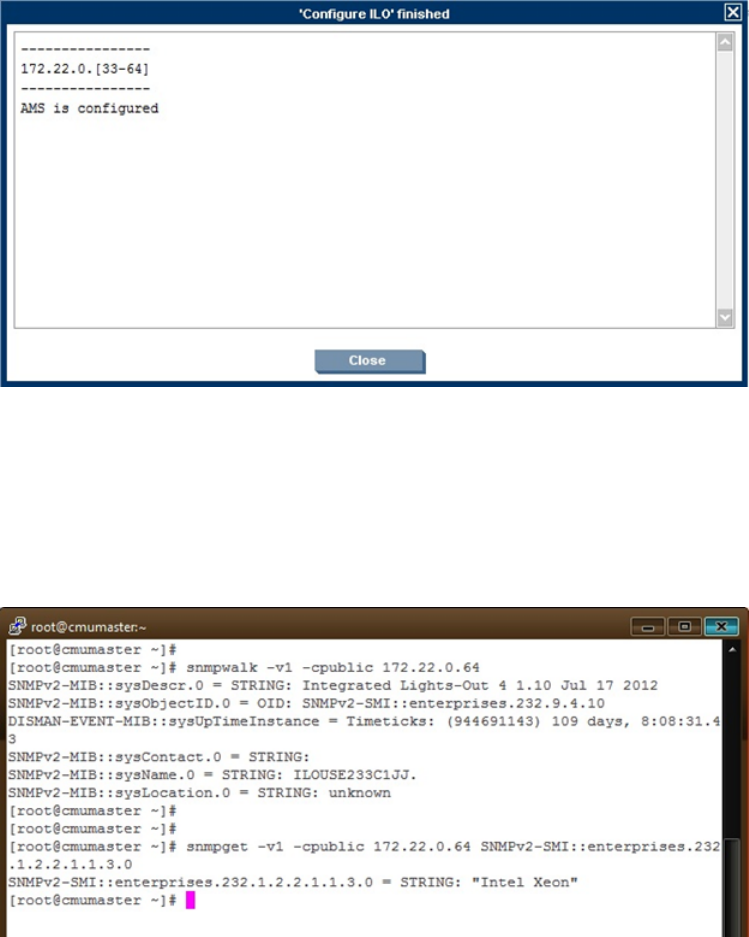

Figure 47 Configure iLO finished
To test which iLOs are configured with AMS, select the nodes. Then select AMS→Test iLO Config.
6.5.9.1.2 Accessing and viewing the HP iLO data via SNMP
Enabling the AMS functionality in the HP iLO makes it possible to query the HP iLO for data via
an SNMP query:
Figure 48 SNMP query
The published HP MIBs, which define the SNMP strings, are available on the internet. HP Insight
CMU includes a subset of these MIBs in /opt/cmu/snmp_mibs/. HP Insight CMU uses these
MIBs to translate the SNMP OID strings into human-readable strings when you gather and view
the data via the HP Insight CMU GUI AMS menu options.
To request a complete set of SNMP data from one or more HP iLOs, select the nodes in the HP
Insight CMU GUI. Then select AMS→Get/Refresh SNMP Data. This process takes several seconds
to complete, after which the following window appears:
114 Monitoring a cluster with HP Insight CMU
