Increasing external bandwidth
In the additional physical user network configurations, the bond1 and bond2 connections are
internally configured to support LACP trunking through the VC. Figure 21 (page 54) and Figure 22
(page 54) illustrate the connections for one and two additional networks.
Cables should be added in numerically descending order starting with the highest numbered
connection port for a given bond.
The customer edge switch must support LACP trunking and be appropriately configured for the
trunking to operate properly.

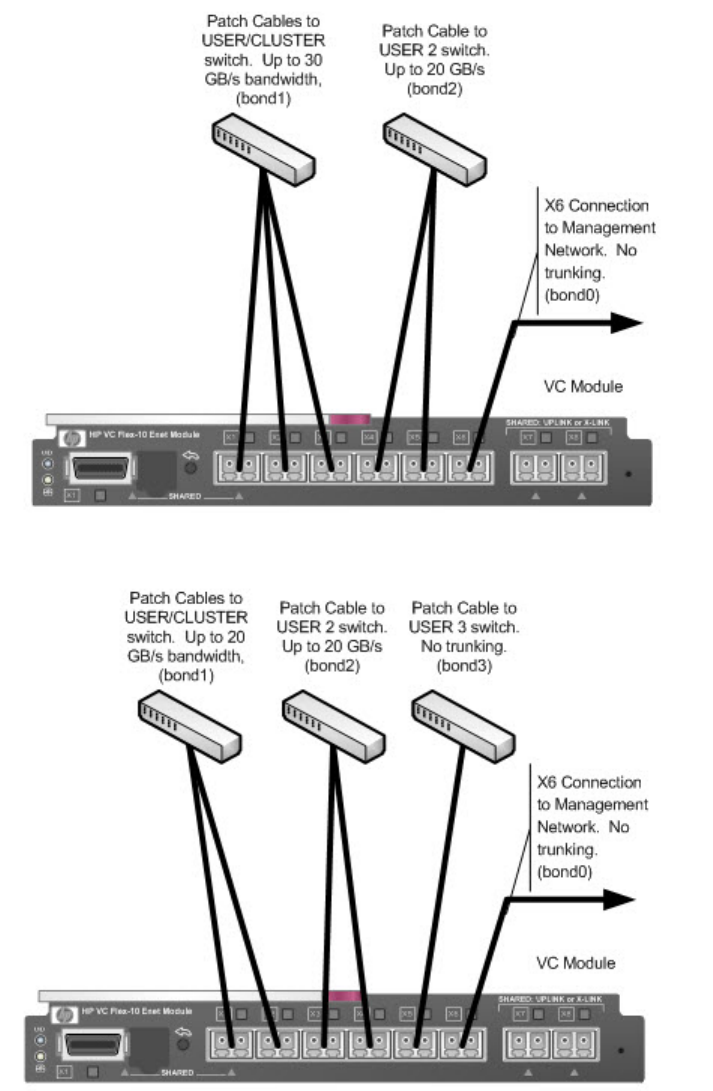

Figure 21 StoreAll 9730 one additional physical user network – LACP trunk cabling
Figure 22 StoreAll 9730 two additional physical user networks – LACP trunk cabling
