7-10 SP Removal and Replacement

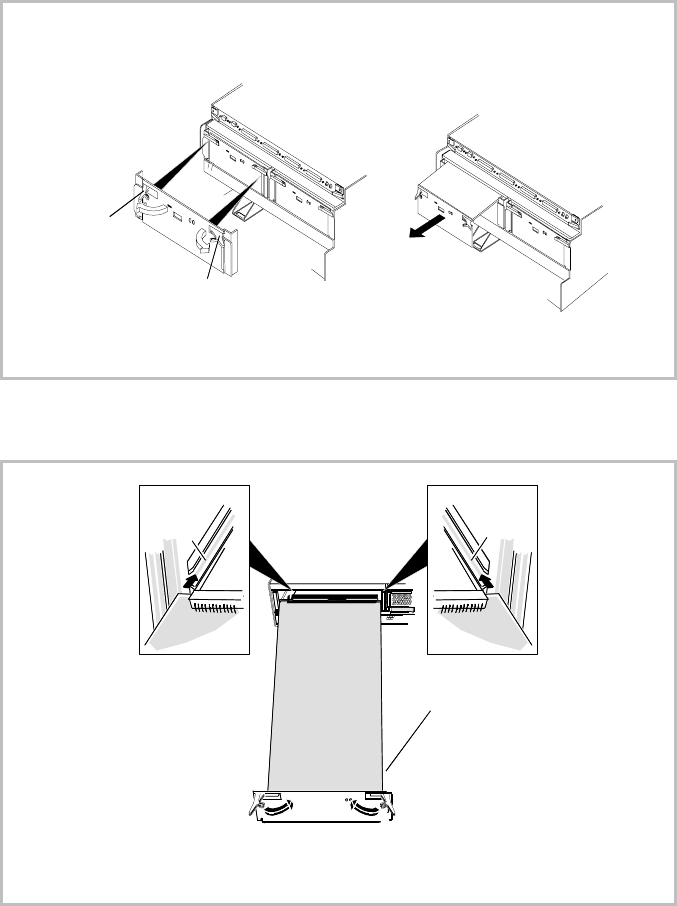

Figure 7-6 Removing an SP
Figure 7-7 Replacing an SP
A. Pull both ejectors until
they unlock and the
processor board starts
coming out of the chassis.
B. Rest edge of SP on palm of
hand, and with other hand
pull it out of chassis, making
sure not to touch any
electronic components or
circuits.
C. Place SP components side up
on static-free work surface.
Ejector
Ejector
Components are located
on the underside of the
board.
Board
guide
Board
guide
Press both ejectors at same
time until they lock and SP
is seated in the chassis.
B.
Engage edges of SP inA.
board guides. Slide
SP into chassis until
ejectors engage with
chassis edge.
