5-34 Support Tools Manager (STM)

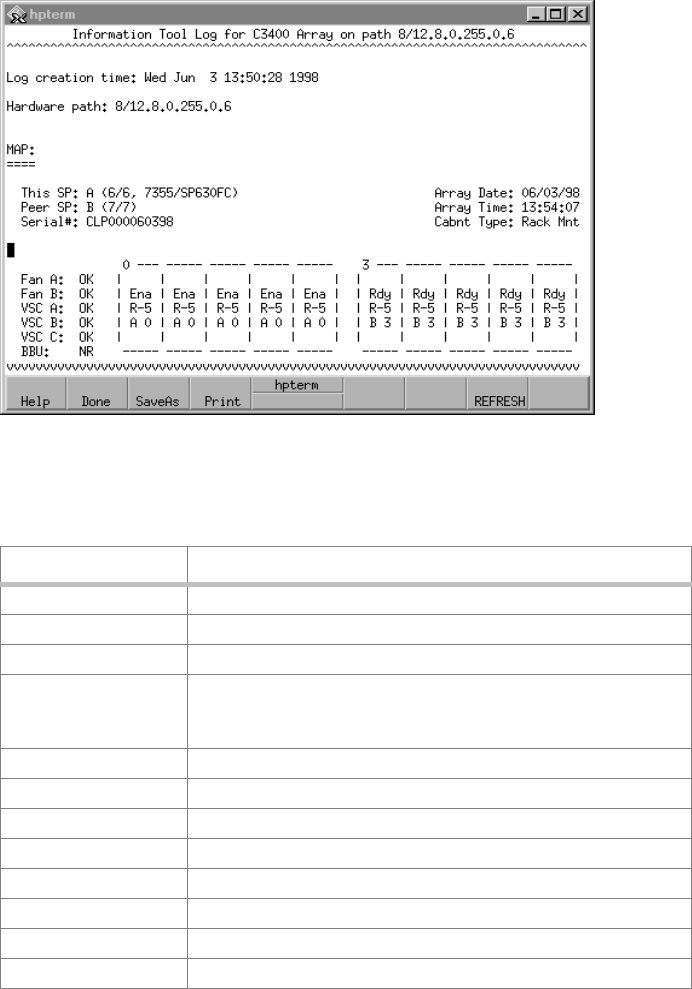

Figure 5-26 Information Log Screen, Map Section
6WDWXVILHOGVVXUURXQGWKHSK\VLFDOPDS
Table 5-9 mstm Status Fields for the Information Log
Status field values Description
This SP ID, hard address, loop ID, and SP model of this SP
Peer SP ID, hard address, and loop ID of peer SP
Serial # Serial number of the disk array
FAULT DETECTED Displayed only if the SP reports a disk array fault (the
Information Tool completion status will be set to Information
Warning)
Array Date disk array’s date, in mm/dd/yy format
Array Time disk array’s time, in hh:mm:ss 24 hour format
Cabnt Type Cabinet type (for example, deskside or rackmount)
Fan A/B Fan status (for example, OK or NR [not ready])
VSC A/B/C Power supply units status
BBU Battery Backup Unit status
Cache Amount of physical memory on selected SP
Systm Physical memory reserved for SP’s use
