User Manual - A3661-90001

3-18 Connect the Power Cord

Connect the Power Cord

Note The disk array must be installed into the cabinet so that the disk array’s fan pack door

can be swung open without interfering with any cables, cabinet PDU, plug on the PDU,

or other devices installed in the cabinet. The PDU should be installed on the left side

of the cabinet (as viewed from the back of the cabinet).

The correct, right angle power cord

must

be used. If an incorrect power cord is used,

the fan pack cannot be opened without powering down the disk array and

disconnecting the power cord.

 0DNHVXUHWKHGLVNDUUD\ªVSRZHUVZLWFKLVLQWKHRIISRVLWLRQWKHQFRQQHFWWKHFRUUHFWULJKW

DQJOHSRZHUFRUGWRWKHGLVNDUUD\DVVKRZQLQ)LJXUH

 3OXJWKHRWKHUHQGRIWKHSRZHUFRUGLQWRRQHRIWKHFDELQHWªV3'8$&SRZHURXWOHWV

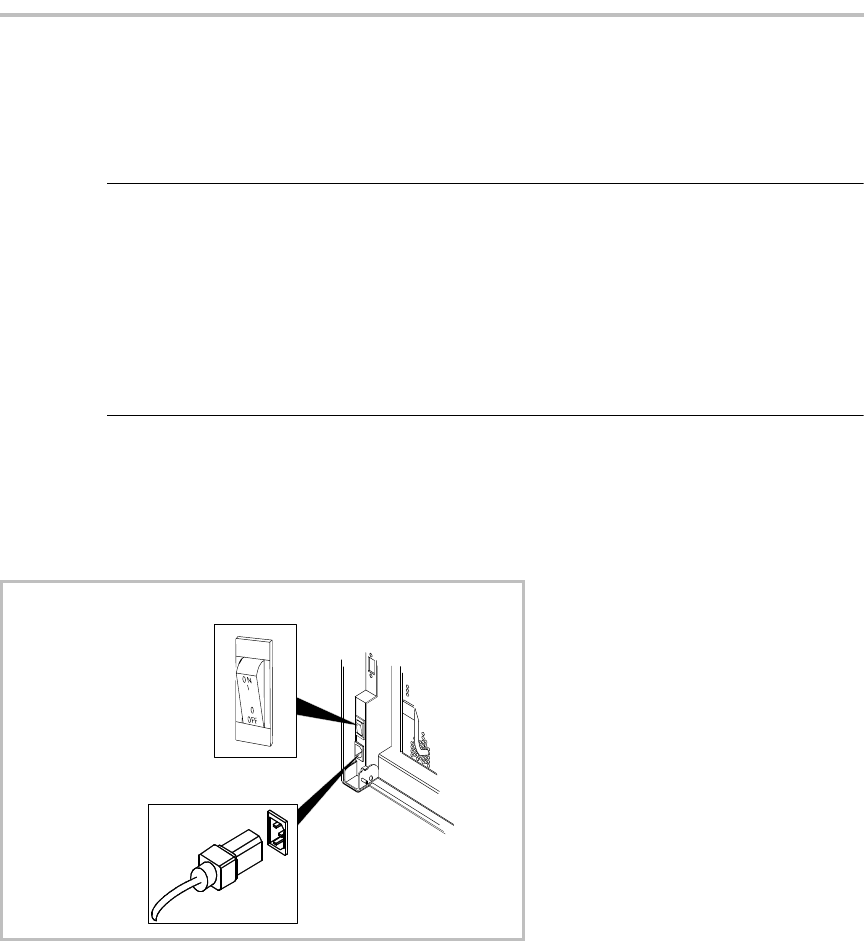

Figure 3-5 Connecting the Power Cord (typical)

Back of storage system

Push power switch to

OFF (0) position.

Plug power cord into

power connector.

Note: Fan not shown

for clarity
