6.6 Install the n
ew tape drive

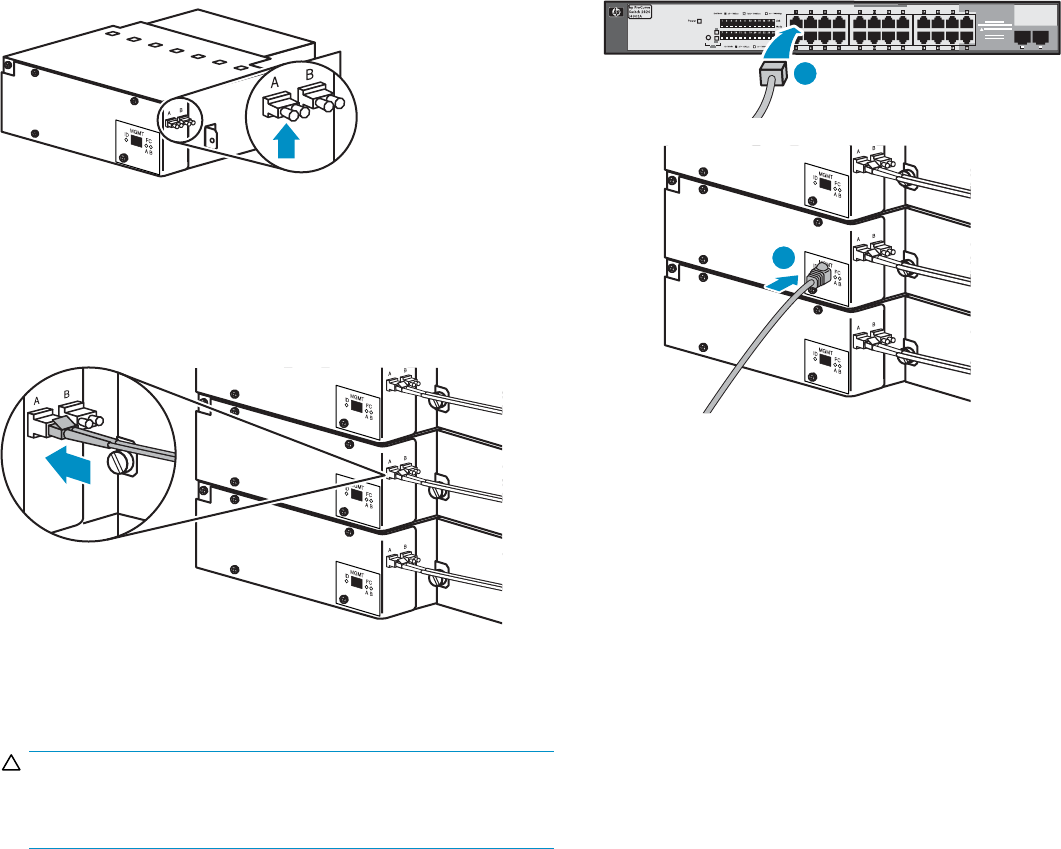

11551
Remove the end
cap from the port A FC connector on the new tape
drive. Insert
thenewdrivemoduleintothevacantdrivebayandtighten
thecaptives
crew to secure the drive to the chassis.
6.7 Connect the Fibre Channel cable
11552
Connect an FC cable that you removed from the old tape drive to the
port A FC connector on the new tape drive. The FC cable should click
into place.
CAUTION:
To avoid
damaging FC cables, do not pinch or bend the cables
sharper
than a 5 cm (2 inch) diameter.
Connect the other end of the FC cable to its corresponding port on
the SAN. Attach a label to each end of the cable to mark the por t
designations.
6.8 Connect the E
thernet cable
11559
1
2
1) Connect o
ne end of the Ethernet cable included with the tape drive
to the MGMT
port on the tape drive. 2) Connect the other end of the
Ethernet c
able to the internal network switch installed in the library. Do
not connec
t the MGMT port or internal network switch to the public
or site LA
N.
6.9 Configure the library and SAN
Insert new LTO4 media if desired.
Reset the library settings
Reset the library settings from Command View TL or the Interface
Manager. Retain the Interface Manager Network Settings, SNMP
Settings, and Trace and Event logs.
To reset the library settings from Command View TL:
1. In the Launcher window, select the lib rary to be configured.
2. In the Library window, click the Support tab.
3. In the left panel, select Restore Fac tory Defaults.Alistof
components appears in the right panel.
4. Select Actions > Restore Defaults on All Components.
5. On the screen that appears you can retain Interface Manager
Network Settings, SNMP Settings, and Trace and Event Logs. Click
Next and then click Finish.
To reset the library settings from the Interface Manager command line,
log in and enter the following command:
restore system defaults imnet logs snmp
Configure the components
Use Command View TL or the Interface Manager CLI to enter the host
mapping, access control, and FC speed settings for all components.
See the HP StorageWorks Interface Manager and Command View TL
User’s Gui de for d etailed instructions.
Configure the SAN switch
Rezone the SAN, if necessary, to account for the new hardware and
paths.
Reboot the SAN FC switch if necessary.
