Product Management
57SAN High Availability Planning Guide

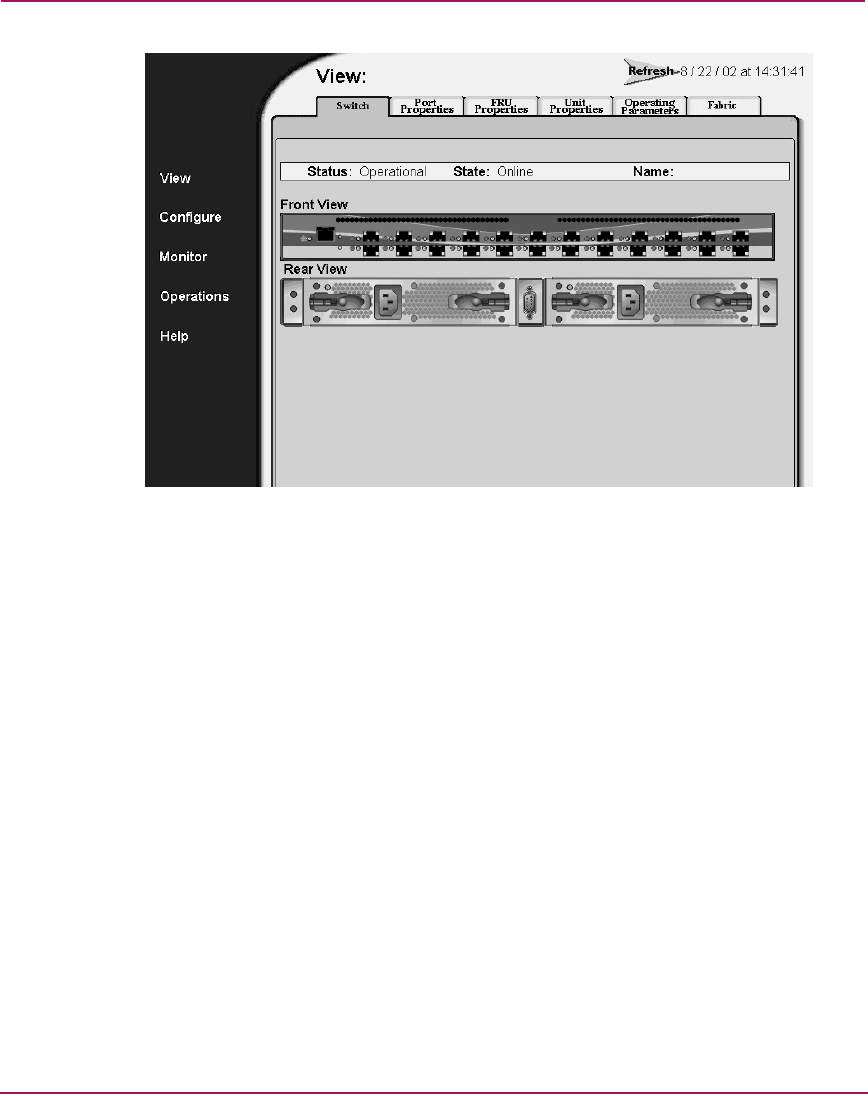

Figure 20: View Panel (Embedded Web Server interface)
Task selection tabs display at the top of the panel, a graphical representation of
product hardware (front and rear) displays at the right side of the panel, and menu
selections (View, Configure, Monitor, Operations, and Help) display at the left
side of the panel. The task selection tabs allow users to perform director or
switch-specific tasks.
The task selection tabs are a function of the menu selected, as follows:
■ View — On the View panel, the Director or Switch (default), Port
Properties, FRU Properties, Unit Properties, Operating Parameters, and
Fabric task selection tabs display.
■ Configure — On the Configure panel, the Ports (default), Switch,
Management, Zoning, Security, and Performance task selection tabs
display.
■ Monitor — On the Monitor panel, the Port List (default), Port Stats, Active
Zone Set, Log, and Node List task selection tabs display.
■ Operations — On the Operations panel, the Port Beaconing (default), Port
Diagnostics, Port Reset, Online State, and Firmware Upgrade task
selection tabs display.
■ Help — The Help selection opens online user documentation that supports
the EWS interface.
