Product Management
52 SAN High Availability Planning Guide
HAFM Main Window
The HAFM management application opens automatically when the management
server desktop is accessed, and the HAFM application main window opens by
default.

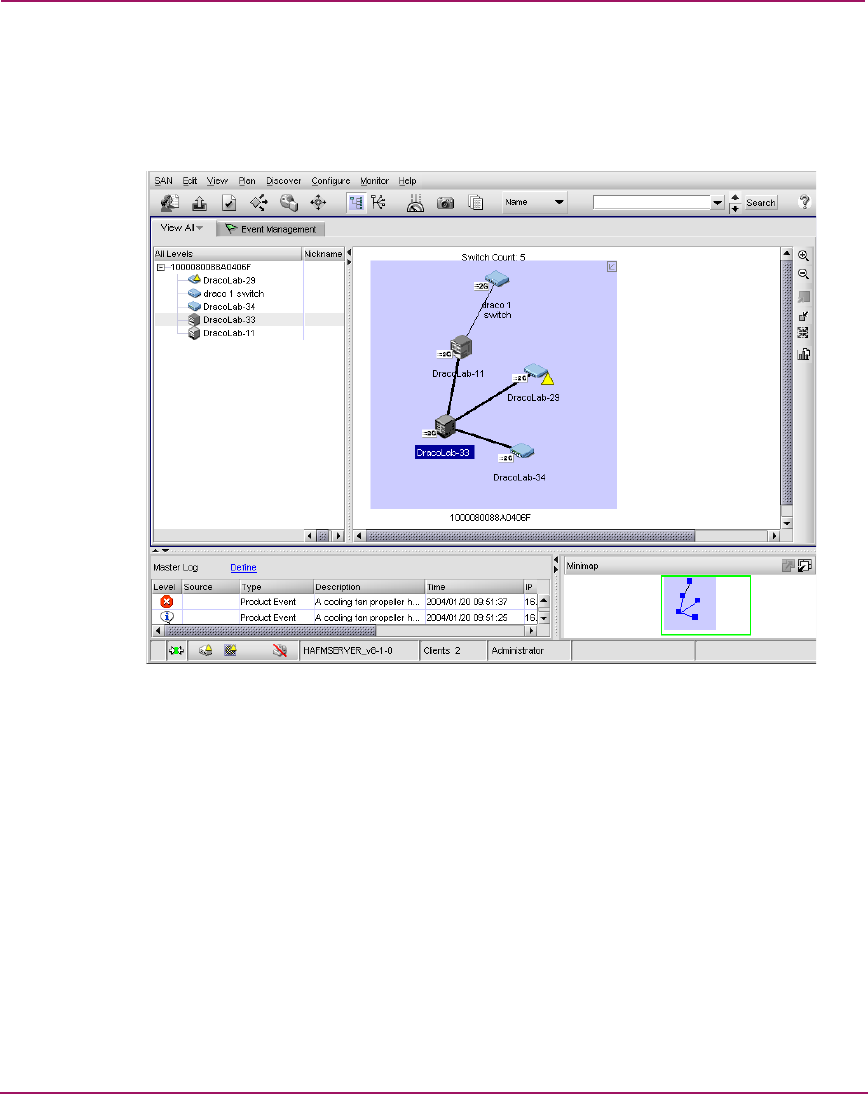

Figure 17: HAFM Main Window
The main window provides the following:
■ Menu bar — Commands at the top of the window provide drop-down menu
selections to perform functions for SAN devices, including editing, viewing,
planning, discovery, configuration, and monitoring.
■ Tool bar — The tool bar (below the menu bar) provides button selections to
perform SAN management tasks, including opening a SAN configuration,
configuring users, setting up and starting the device discovery process,
configuring zoning, displaying a SAN, displaying SAN utilization, and
viewing reports.
■ View tab — Select the View tab to display a product list and physical map of
the discovered topology.
