Introduction to HP Fibre Channel Products
30 SAN High Availability Planning Guide
Shortwave laser transceivers are available for transferring data over multimode
fiber-optic cable. Longwave laser transceivers are available for transferring data
over single-mode fiber-optic cable. Fiber-optic cables attach to switch port
transceivers with duplex LC connectors. Green and amber status light-emitting
diodes (LEDs) are associated with each port.

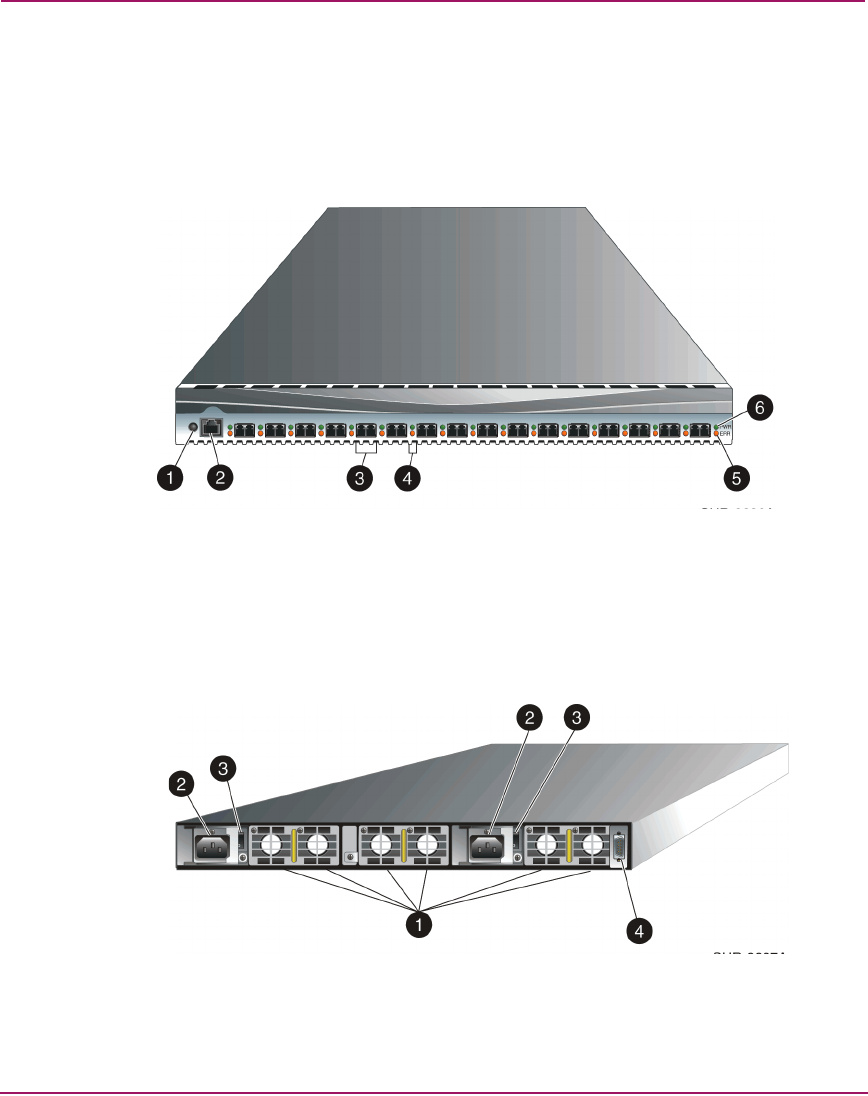

Figure 7: Edge Switch 2/16 (front view)
Figure 8 illustrates the rear of the switch.
Figure 8: Edge Switch 2/16 (rear view)
1 Initial machine load (IML) button
2 Ethernet LAN connector
3 SFP transceivers
4 Port LEDs
5 Error LED (amber)
6 Power LED (green)
1 Cooling fans (6)
2 Power supplies (2)
3 Power switches on power supplies (2)
4 RS-232 maintenance port
