Introduction to HP Fibre Channel Products
24 SAN High Availability Planning Guide
— Class F transmission service that is used by multiple directors to
communicate across ISLs to configure, control, and coordinate the
behavior of a multi-switch fabric.
Director 2/64
The Director 2/64 is a second-generation, enterprise-class switch that provides
switched fabric connectivity for up to 64 Fibre Channel devices. Figure 1
illustrates the front of the director.
Each UPM card provides four 2.125 Gbps Fibre Channel port connections
through duplex small form factor pluggable (SFP) fiber-optic transceivers.
Shortwave laser transceivers are available for transferring data over multimode
fiber-optic cable. Longwave laser transceivers are available for transferring data
over single-mode fiber-optic cable. Fiber-optic cables attach to director port
transceivers with duplex LC connectors.

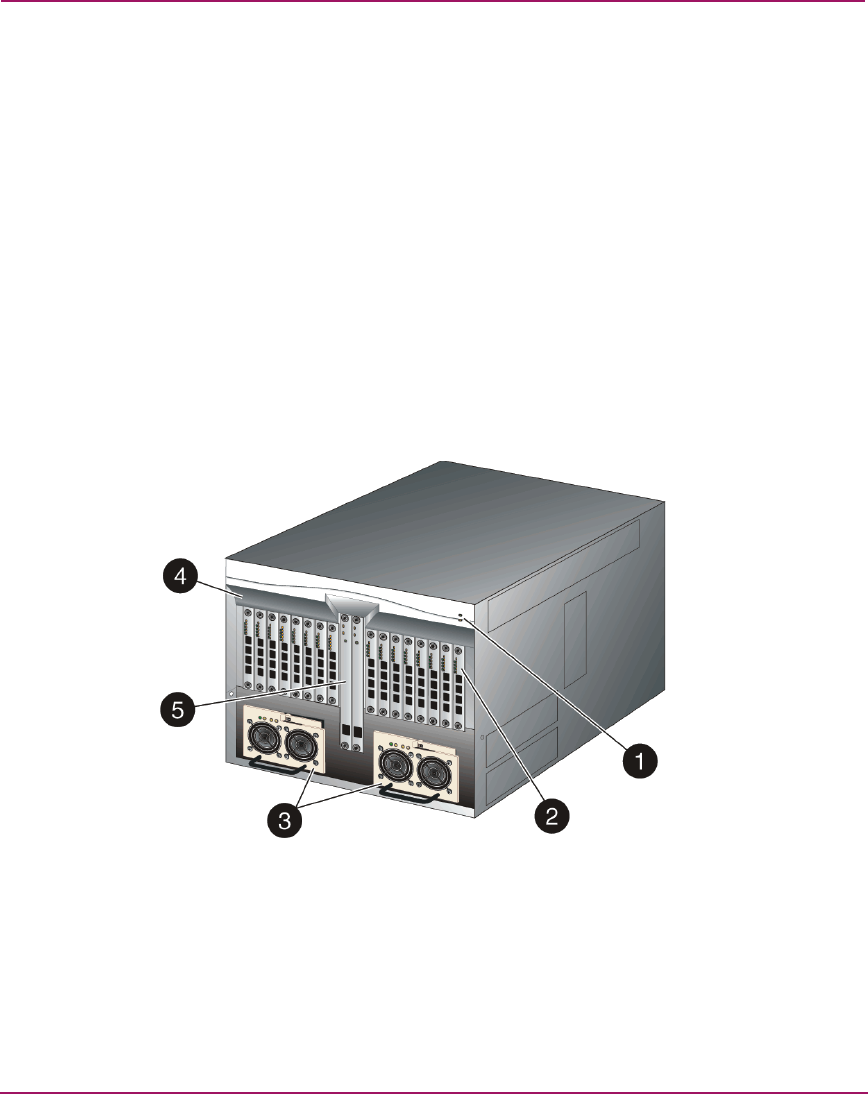

Figure 1: Director 2/64 (front view)
Figure 2 illustrates the rear of the director.
1 Power and system error
light-emitting diodes (LEDs)
2 Up to 16 universal port
module (UPM) cards
3 Redundant power supplies
4 Front bezel
5 Redundant control processor 2
(CTP2) cards
