FW V06.XX/HAFM SW V08.02.00 HP StorageWorks SAN High Availability Planning Guide (AA-RS2DD-TE, July 2004)

Physical Planning Considerations
153SAN High Availability Planning Guide

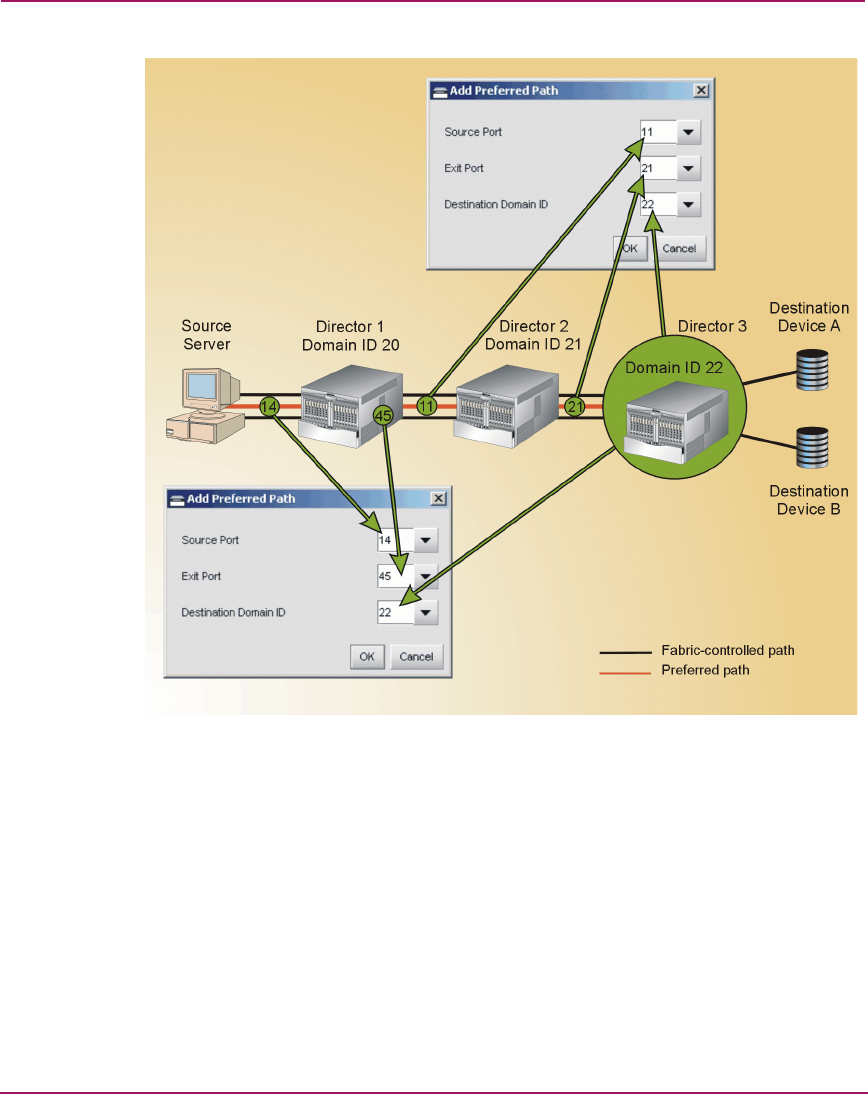

Figure 59: Preferred Path Configuration
This procedure only specifies that data will enter and exit Director 1 through
specific ports on the path to Director 3. The procedure must be repeated at the
second director as follows:
1. Select the Preferred Path option from the Element Manager application’s
Configure menu. The Configure Preferred Paths dialog box displays.
2. Click Add. The Add Preferred Path dialog box displays
(top of Figure 59).
3. For the director entry port, type 11 in the Source Port field. For the director
exit port, type 21 in the Exit Port field. For the destination device (Director
3), type 22 in the Destination Domain ID field.
