Appendix A: Management Console Icons 270

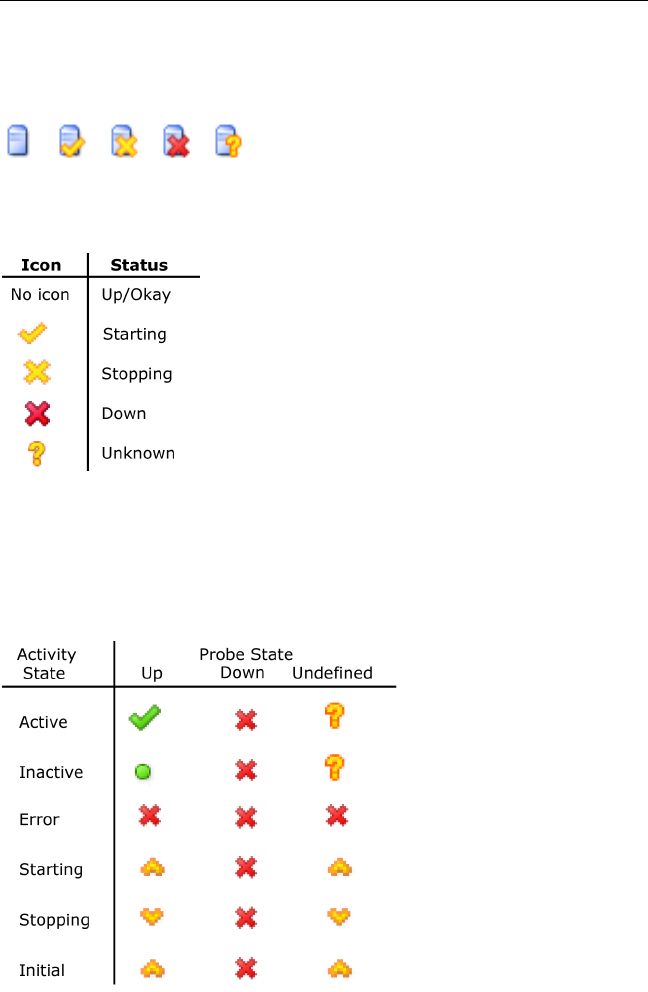

Additional icons are added to the entity icon to indicate the status of the
entity. The following example shows the status icons for the server entity.
The status icons are the same for all entities and have the following
meanings.
Monitor Probe Status
The following icons indicate the status of service monitor and device
monitor probes. If the monitor is disabled, the color of the icons is less
intense.
