Chapter 3: Introduction to HP Clustered File System 17
iSCSI Configuration

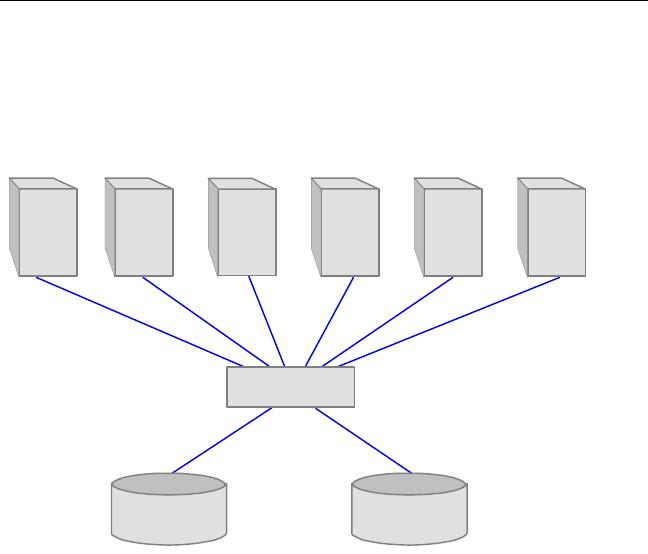

This example shows an iSCSI configuration. The Microsoft iSCSI initiator
is installed on each server. Ideally, a separate network should be used for
connections to the iSCSI storage arrays.
Server
1
Server
2
Server
4
Server
5
Server
6
iSCSI Array iSCSI Array
Server
3
Network Switch
