Chapter 14: Cluster Operations on the Applications Tab 171
Filter the Applications Display
You can use filters to limit the information appearing on the Application
tab. For example, you may want to see only a certain type of monitor, or
only monitors that are down or disabled. You can use filters to do this.

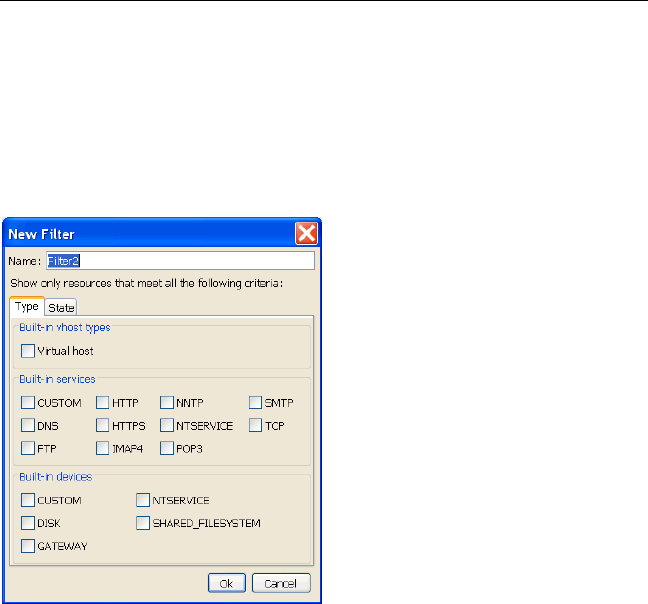

To add a filter, click the “New Filter” tab and then configure the filter.
Name: Specify a name for this filter.
On the Type tab shown above, select the types of virtual hosts, service
monitors, and device monitors that you want to see.
Click on the State tab to select specific states that you are interested in
viewing. (The Applications tab will be updated immediately.)
