HP ProLiant Storage Server 1U Rail Installation Instructions (5697-5590, March 2006)

Server installation

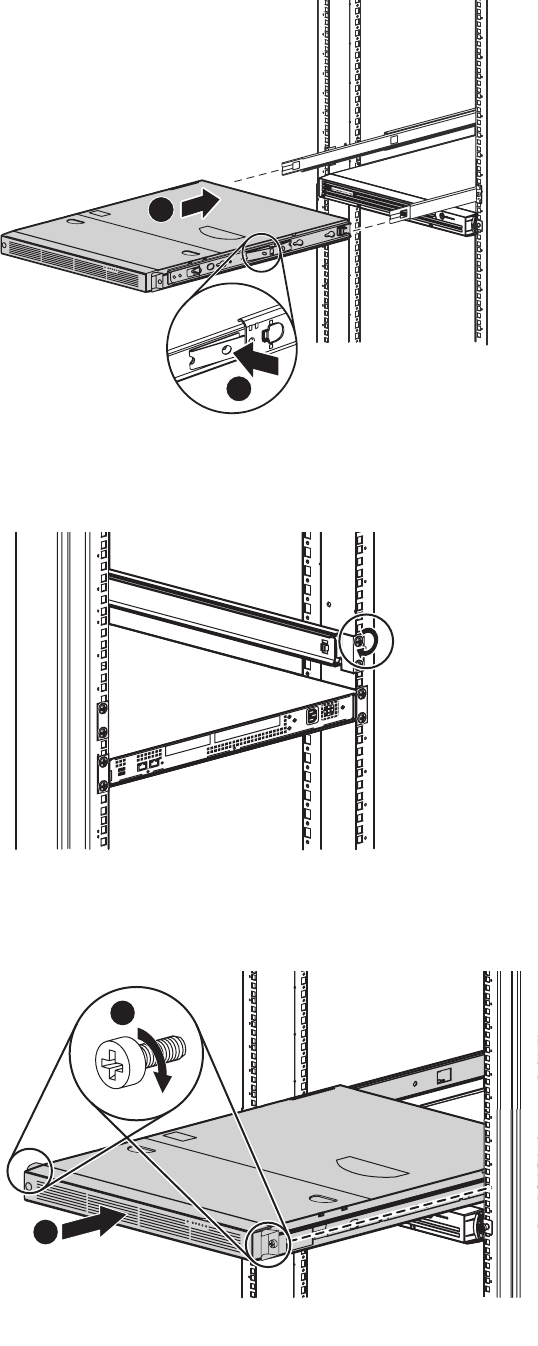

1. Extend the outer slide rails fully from the rack until they lock. Insert
the inner slide rails (with the server attached) into the outer slide
rails, as shown 1. Press the inner slide lock 2, and then push the
server all the way into the rack, making sure that the inner slide
rails lock into place.
2. Slide the server in and out of the rack several times, allowing the
rails to position properly.
3. Tighten all the rail mounting screws.
.
4. Push the server fully into the rack 1. Insert a screw into each bezel
bracket and tighten to secure the server to the rack 2.
.
5. To complete the preparation of your storage server for operation,
see the HP ProLiant Storage Server installation instructions that are
provided with your server.
