HP Device Manager 4.6 - Deployment Guide

Normal scale deployment
Device number: 25,000
Deployment: 1 HPDM Server, MS SQL Server, 3 HPDM Gateways, 1 Master Repository, 2 Child Repositories.

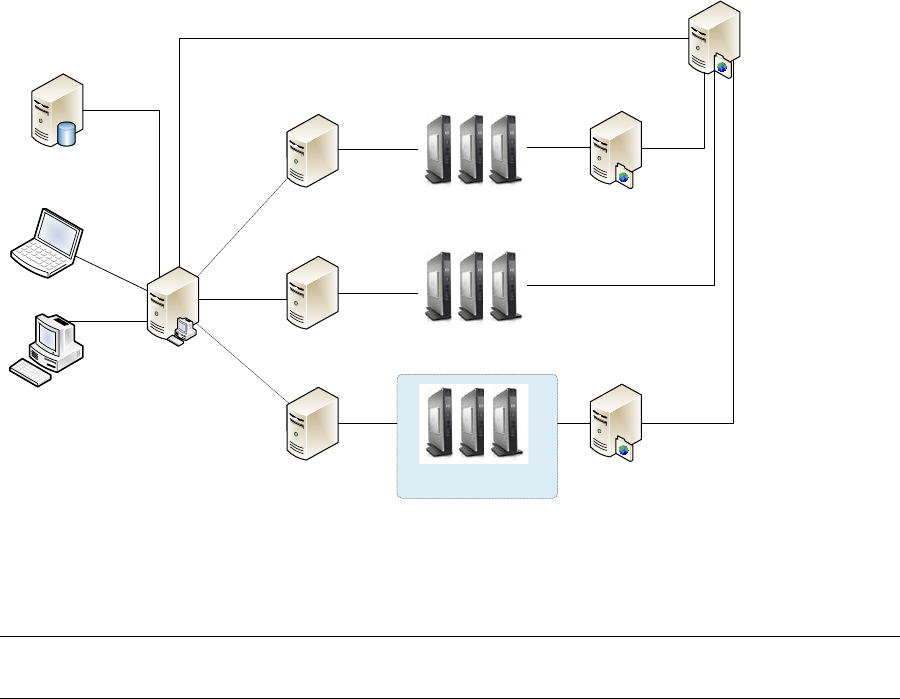

Figure 4. Normal scale topography
HPDM Master Repository
MS SQL Server
HPDM Server
HPDM Gateway
HPDM Gateway
HPDM Child Repository
HPDM Console
HPDM Gateway
Thin
Client
Thin
Client
Thin
Client
Thin
Client
Thin
Client
Thin
Client
Thin
Client
Thin
Client
Thin
Client
HPDM Console
HPDM Child Repository
NAT
HP recomments that you deploy each HPDM component on its respective machine. In the case that the Master Repository
overloads, there are two Child Repositories to divide the file transmission pressure. There are three HPDM Gateways to
separate all devices into three groups. Note that one device group is behind a NAT environment. Use the HPDM poll function
to manage those devices.
Note
See Deployment factors for hardware and other requirements.
