Settings for CIM/WBEM (SMI-S CIMOM)
120
• Number of read I/Os that hit the cache
• Number of write I/Os
• Number of write I/Os that hit the cache
This section describes the system configuration that is required to use the performance information
acquisition feature, and how to specify settings for acquiring performance information.
7-7-1 System configuration required to use the performance
information acquisition feature
This section describes the system configuration required to acquire performance information of a
storage subsystem.
The following figure shows an example system configuration when performance information when
such information is collected.

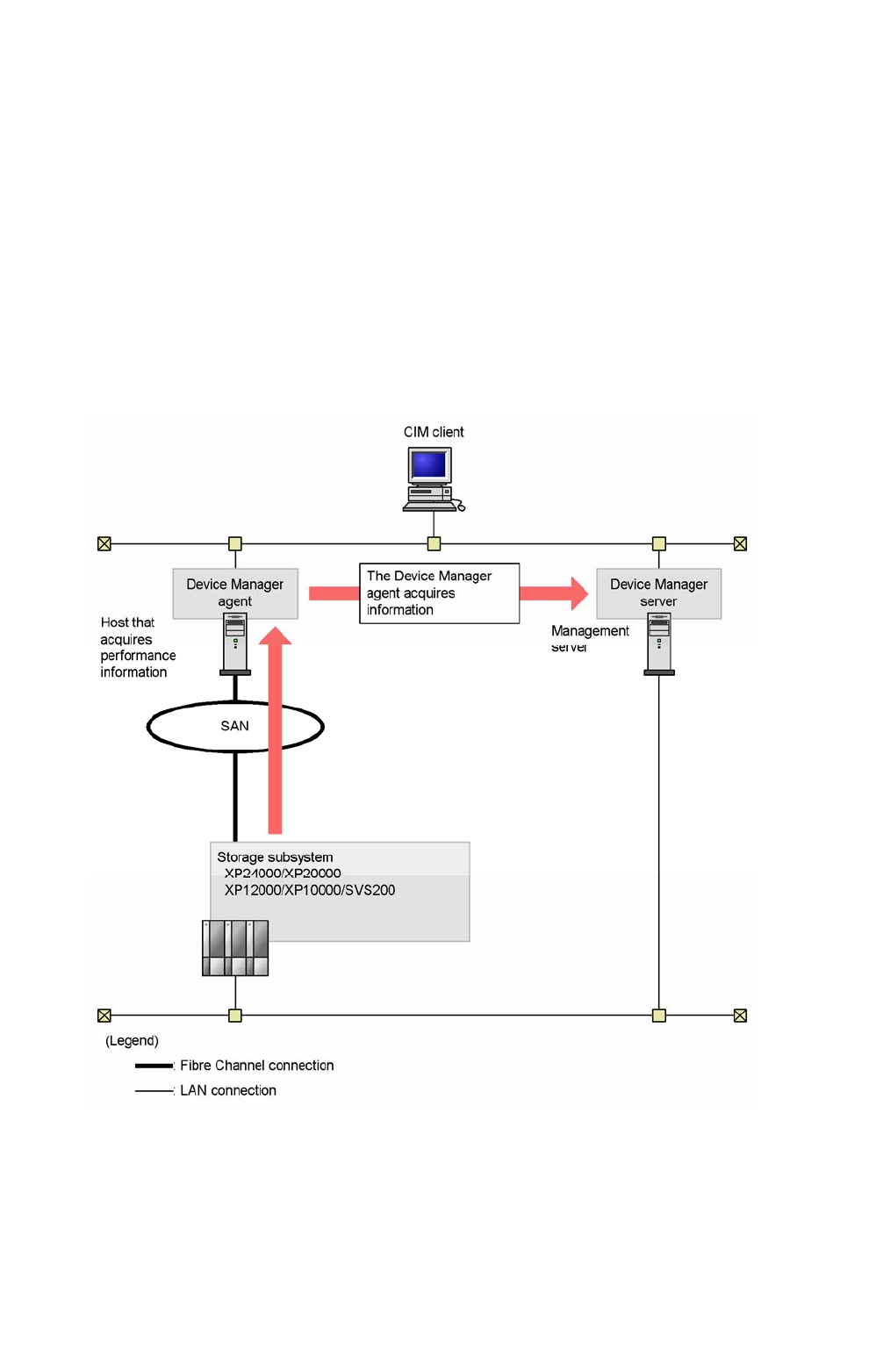

Figure 7-2 Example of a system configuration in which performance information of a storage
subsystem is collected
Management server
A management server is a server in which Device Manager server version 5.9 or later is
installed. You must set the management server so that CIM/WBEM can be used. For details on
how to set up CIM/WBEM, see sections
7-3 and 7-4 .
