DCFM Migration and Transition Guide v10.0.1 (53-1001074-01, December 2008)

24 DCFM Migration and Transition Guide
53-1001074-01
1
11. Select Internal FTP Server or External FTP Server on the FTP Server screen and click Next.
NOTE
If you select to use an FTP Server which is not configured on the same machine as the
Management application, the Firmware Repository feature will not be available.

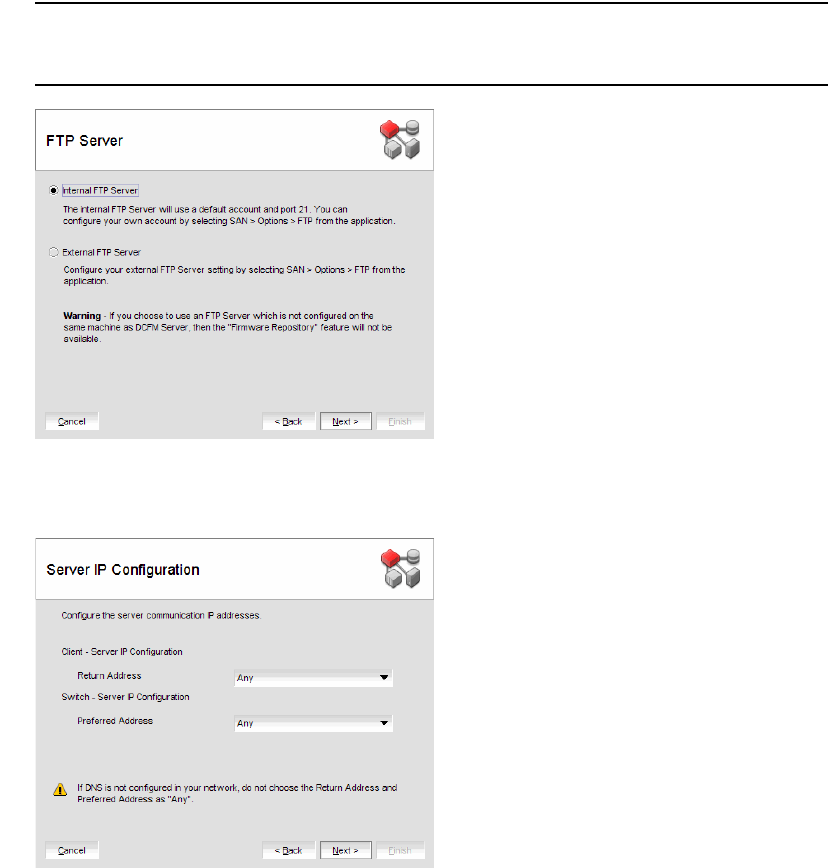

FIGURE 13 FTP Server screen
12. Complete the following steps on the Server IP Configuration screen.
FIGURE 14 Server IP Configuration screen
a. Select an address from the Client - Server IP Configuration Return Address list.
b. Select an address from the Switch - Server IP Configuration Preferred Address list.
c. Click Next.
If DNS is not configured for your network, do not select the Any option from either the Return
Address or Preferred Address list. Selecting Any prevents clients and devices from
communicating with the Server.
If you select a specific IP address from the Server IP Configuration screen and the selected IP
address changes, you will not be able to connect to the server. To change the IP address, refer
to “Configuring an explicit server IP address” on page 36.
