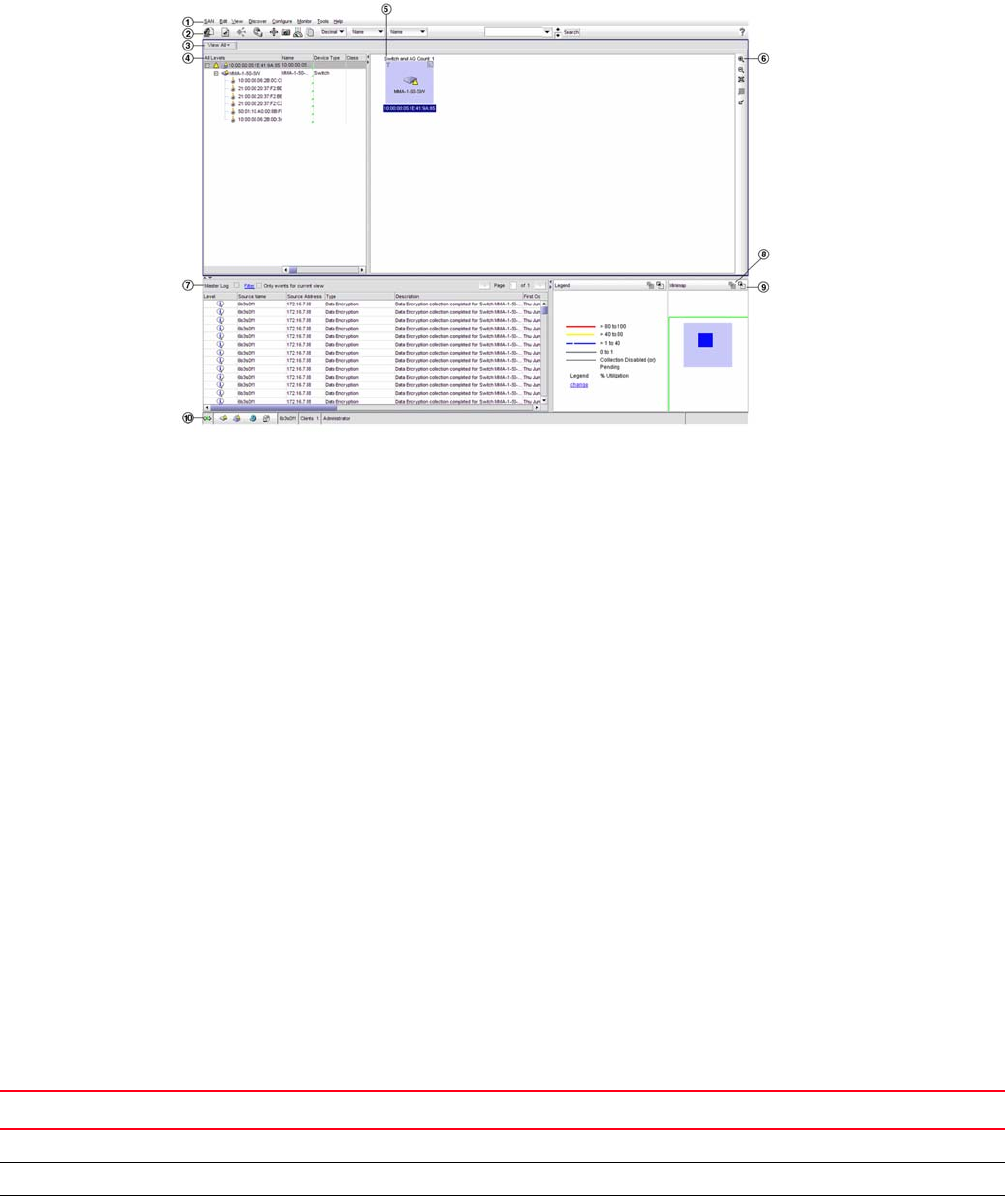

FIGURE 48 DCFM main interface
1. Menu Bar - Lists commands you can perform on the SAN.
2. Toolbar - Provides buttons that enable quick access to dialog boxes and functions.
3. View All tab - Displays the Master Log, Minimap, Connectivity Map (topology), and Product List.
4. Product List - Lists the devices discovered in the SAN.
5. Connectivity Map - Displays the SAN topology, including discovered and monitored devices and
connections.
6. Toolbox - Provides tools for viewing the Physical Map.
7. Master Log - Displays all events that have occurred on the SAN.
8. Utilization Legend. Indicates the percentage ranges represented by the colored, dashed lines
on the Physical Map. Only displays when you select Monitor > Performance > View Utilization or
click the Utilization icon on the toolbar.
9. Minimap - Displays a “bird’s-eye” view of the entire SAN.
10. Status Bar - Displays data regarding the Server, connection, device, and fabric.
Fabric Manager to DCFM command mapping
The following table details the changes in menu command mapping between Fabric Manager and
DCFM as well as showing which commands were not implemented.
TABLE 13
Menu Fabric Manager DCFM Comments
File New <none> Not implemented.
Export to SVG <none> Not implemented.
Print Topology <none> Not implemented.
