18. Complete the following steps on the Server Port Configuration screen.
NOTE
Do not use port 2638 for any of these port numbers. Port 2638 is used internally by the server.

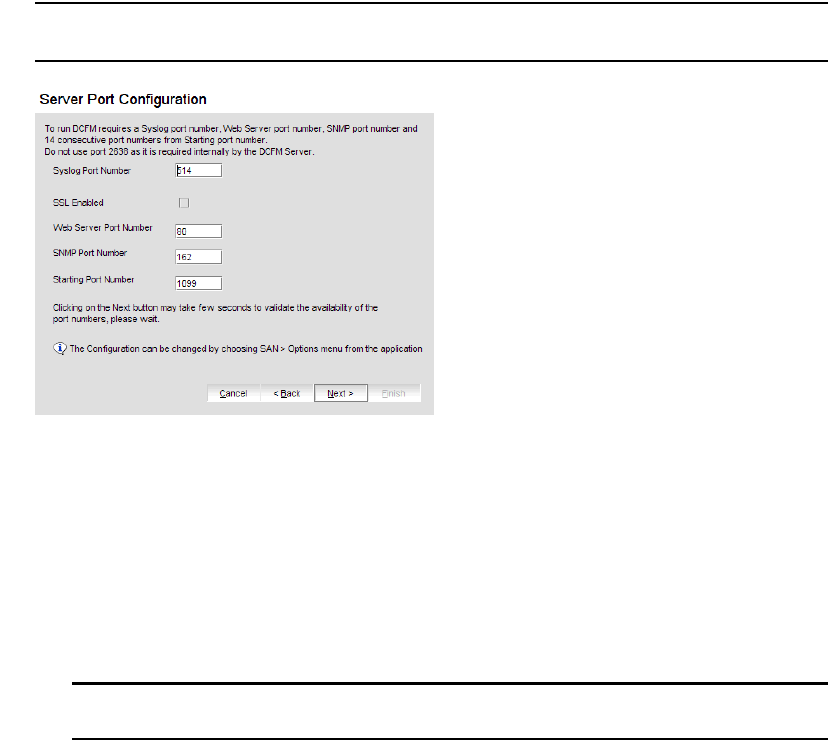

FIGURE 36 Server Port Configuration screen
a. Enter a port number in the Syslog Port Number field (default is 514).
b. Enable SSL by selecting the SSL Enabled check box.
c. Enter a port number in the Web Server Port Number field (default is 443 if SSL Enabled is
selected; otherwise, the default is 80).
d. Enter a port number in the SNMP Port Number field (default is 162).
e. Enter a port number in the Starting Port Number field (default is 24600).
NOTE
The server requires 14 consecutive free ports beginning from the starting port number.
f. Click Next.
If you enter a port number already in use, a Warning displays beneath the associated port
number field. Edit that port number and click Next.
19. Select one of the following options on the SAN Size screen:
• Small (managing up to 2000 ports, 1-20 domains)
• Medium (managing up to 5000 ports, 20-60 domains)
• Large (managing up to 9000 ports, 61-120 domains)
20. Click Next.
21. Verify your configuration and license information on the Server License Summary screen and
click Next.
22. Click Start on the Apply User Settings screen.
User Settings migration may take up to 30 minutes.
23. Click Next on the Apply User Settings screen.
