DCFM Migration and Transition Guide v10.0.1 (53-1001074-01, December 2008)

10 DCFM Migration and Transition Guide
53-1001074-01
1
10. Complete the following steps on the Server Port Configuration screen.
NOTE
Do not use port 1527 for any of these port numbers. Port 1527 is used internally by the server.

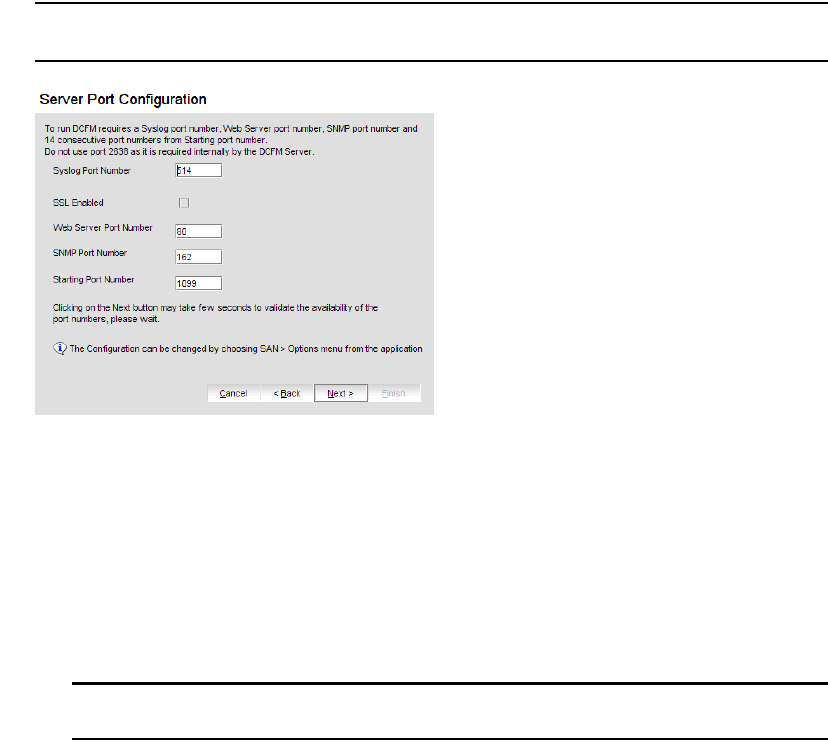

FIGURE 6 Server Port Configuration screen
a. Enter a port number in the Syslog Port Number field (default is 514).
b. Enable SSL by selecting the SSL Enabled check box.
c. Enter a port number in the Web Server Port Number field (default is 443 if SSL Enabled is
selected; otherwise, the default is 80).
d. Enter a port number in the SNMP Port Number field (default is 162).
e. Enter a port number in the Starting Port Number field (default is 24600).
NOTE
The server requires 14 consecutive free ports beginning with the starting port number.
f. Click Next.
If you enter a port number already in use, a Warning displays next to the associated port
number field. Edit that port number and click Next.
11. Verify your configuration information on the Server License Summary screen and click Next.
12. Select the Start Client check box on the Start Server screen.
13. Click Finish.
After all of the DCFM services are started, the Log In dialog box displays.
14. Enter your user ID and password in the User ID and Password fields.
If you are upgrading from a previous release, your user name and password do not change.
15. Click Login.
16. Click OK on the Login Banner.
