Transition
In this chapter
•EFCM transition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
•Fabric Manager transition. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
•WebTools Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
EFCM transition
The visual differences between EFCM and DCFM are minor.
FIGURE 43 EFCM main interface
The key difference between the EFCM and DCFM interfaces is that the EFCM Event Management
and Security tabs are not implemented in DCFM. You can access Event Policies available through
Monitor > Event Policies and Security Center is only available through the M-EOS Element
Managers.

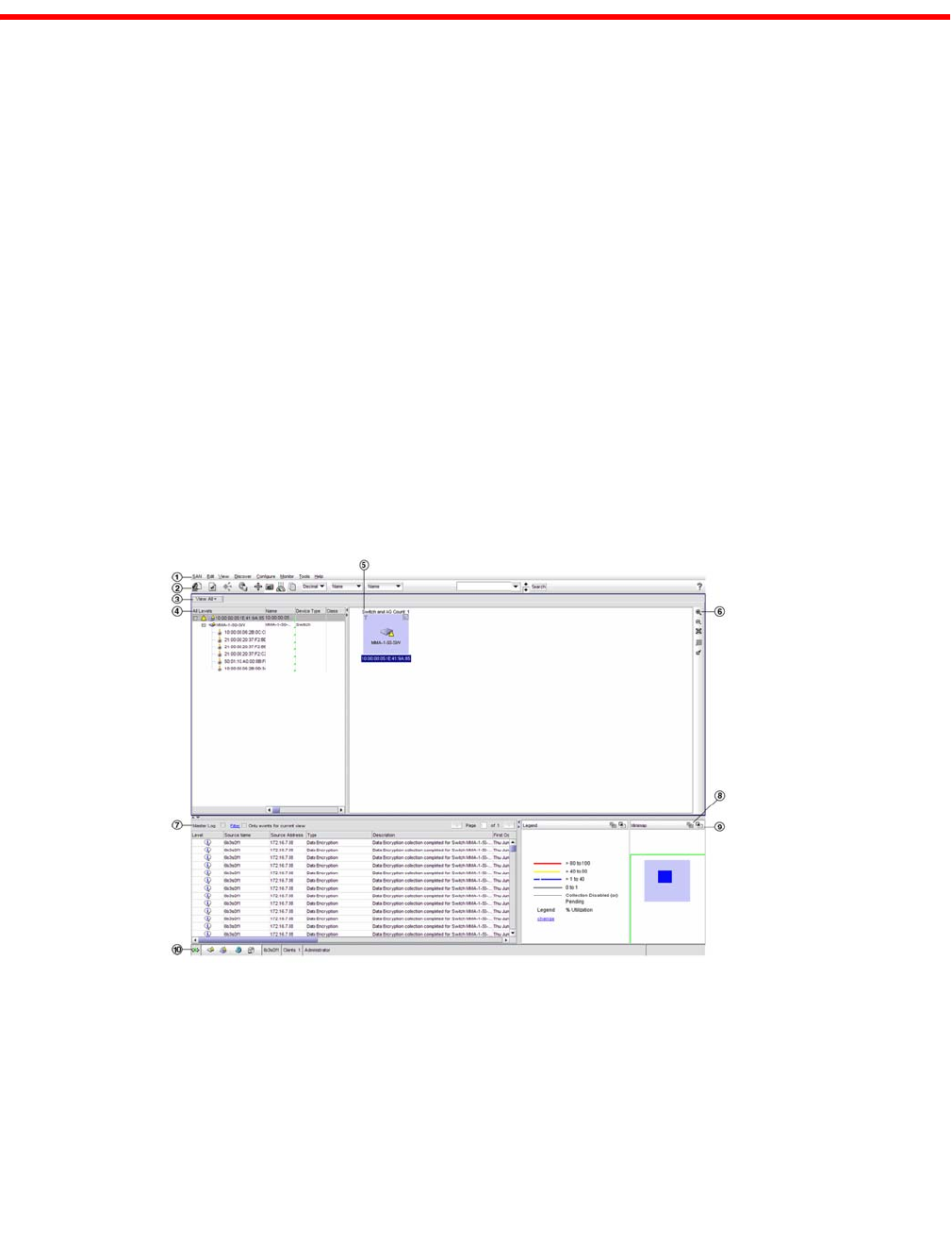

FIGURE 44 DCFM main interface
1. Menu Bar - Lists commands you can perform on the SAN.
2. Toolbar - Provides buttons that enable quick access to dialog boxes and functions.
3. View All tab - Displays the Master Log, Minimap, Physical Map (topology), and Product List.
4. Product List - Lists the devices discovered in the SAN.
