HP StorageWorks 9100 Extreme Data Storage System V1.0.2 wiring diagrams for expansion cabinet configurations (AN544-96002, April 2009)

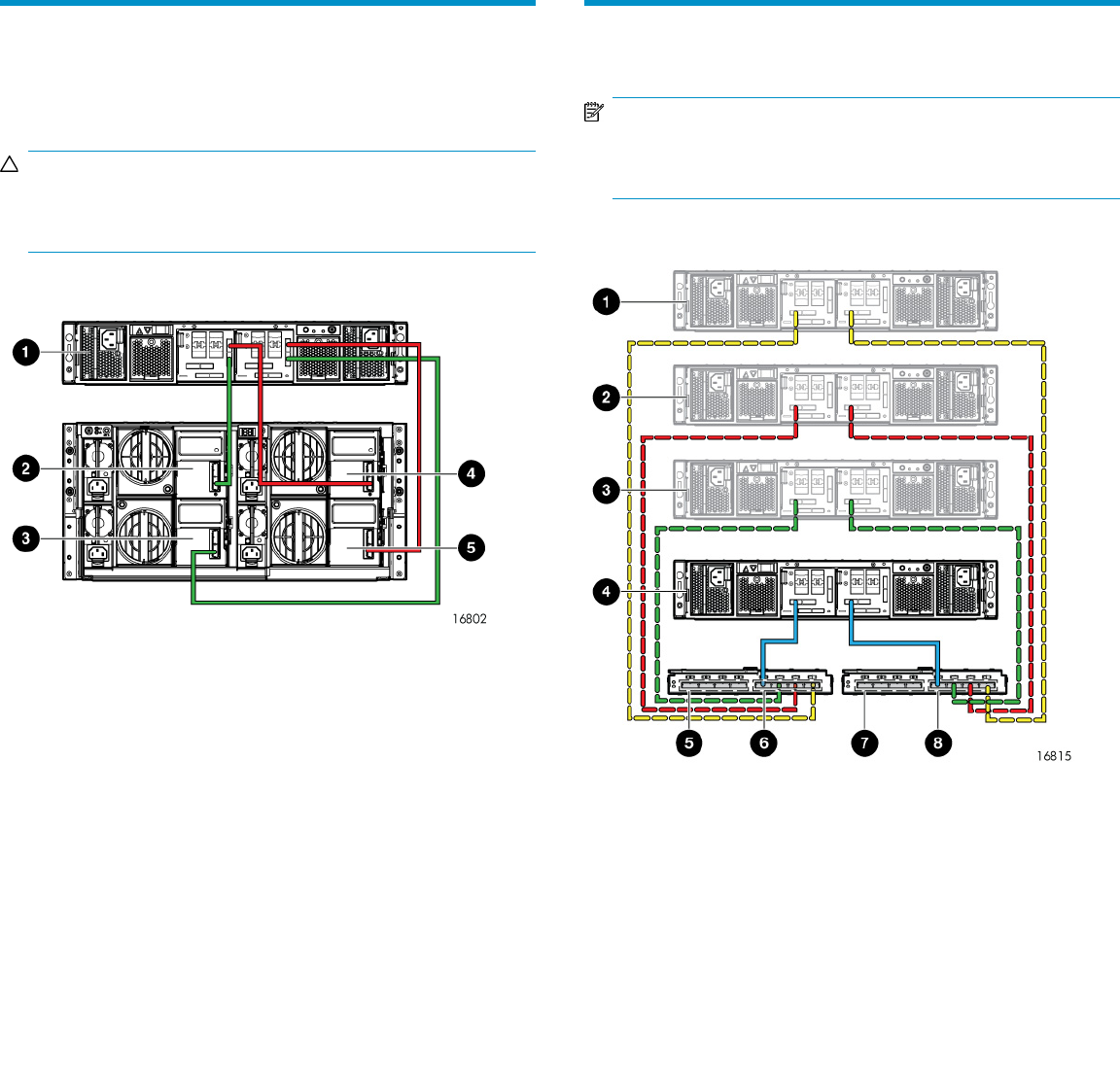

Storage block cabling
A storage block is comprised of the HP ExDS9100c and HP
ExDS9100cx.
CAUTION:
Correct cabling of the storage block is critical for proper HP
ExDS9100 Storage System operation.
ExDS9100c1.
ExDS9100cx primary I/O module (drawer 2)2.
ExDS9100cx secondary I/O module (drawer 2)3.
ExDS9100cx primary I/O module (drawer 1)4.
ExDS9100cx secondary I/O module (drawer 1)5.
SAS switch cabling
NOTE:
Callouts 1 through 3 indicate additional HP ExDS9100c
components.
SAS switch ports 1 through 4 (in interconnect
bay 3 of the c-Class Blade Enclosure). Used
by base cabinet.
5.ExDS9100c 81.
SAS switch ports 5 through 8 (in interconnect
bay 3 of the c-Class Blade Enclosure).
6.ExDS9100c 72.
SAS switch ports 1 through 4 (in interconnect
bay 4 of the c-Class Blade Enclosure).
7.ExDS9100c 63.
SAS switch ports 5 through 8 (in interconnect
bay 4 of the c-Class Blade Enclosure). Used
by base cabinet.
8.ExDS9100c 54.
