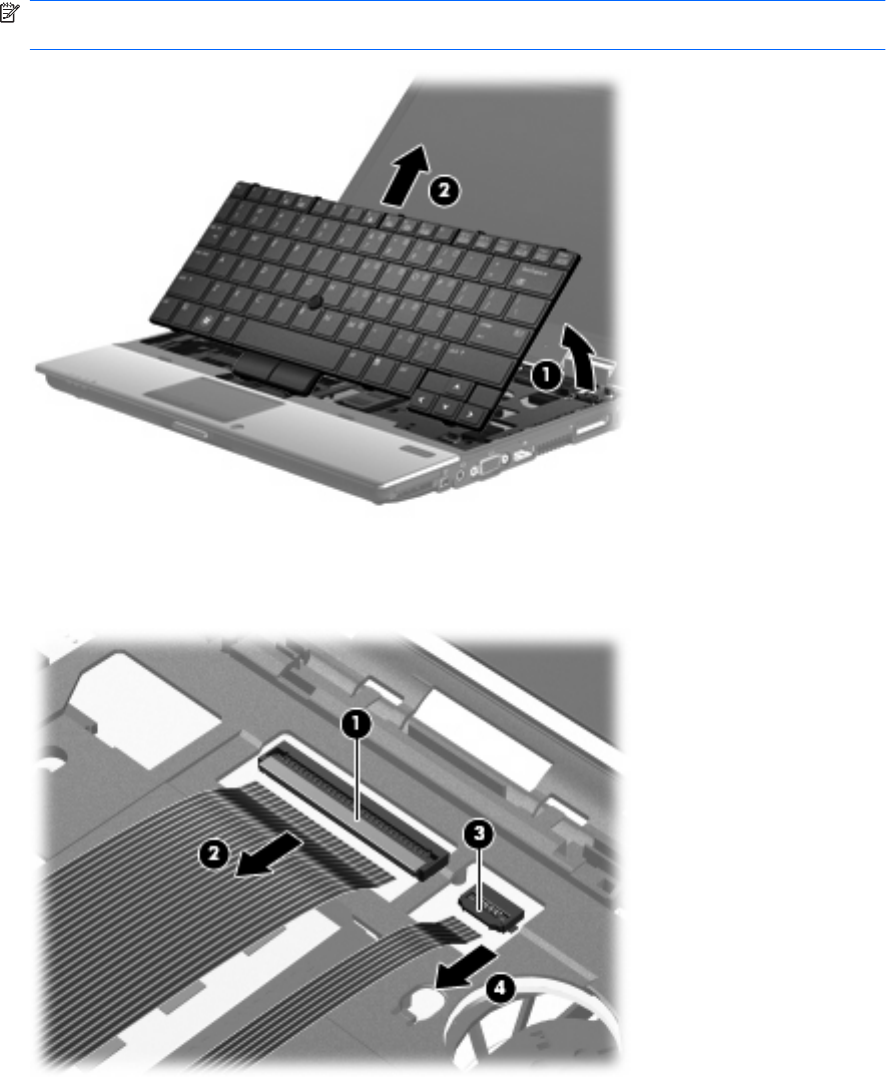

13. Carefully lift the top edge of the keyboard (1), and pull the keyboard up (2).
NOTE: If the left side of the keyboard releases before the right side, pull the keyboard slightly to
the left to release the right side.
14. Carefully lift the large cable connector (1), and then pull the cable away (2) to release it.
15. Carefully lift the small cable connector (3), and then pull the cable away (4) to release it.
16. Tilt the keyboard over until it rests on the palm rest of the computer.
17. Remove the memory module compartment cover screw (1).
104 Chapter 9 Memory modules
