Installing Additional Drives
When installing additional drives, follow these guidelines:
●
The primary Serial ATA (SATA) hard drive must be connected to the dark blue primary SATA
connector on the system board.
●
Connect a secondary Serial ATA (SATA) hard drive to the white SATA connector on the system
board.
●
Connect the first SATA optical drive to the light blue SATA connector on the system board.
●
Connect a second SATA optical drive to the orange SATA connector on the system board.
●
The system does not support Parallel ATA (PATA) optical drives or PATA hard drives.
●
If needed, HP has provided extra drive retainer screws on the interior of the front bezel that are
used to secure the drives in the drive cage. Hard drives use 6-32 standard screws. All other drives
use M3 metric screws. The HP-supplied 6-32 standard screws (1) are silver. The HP-supplied M3
metric guide screws (2) are black.

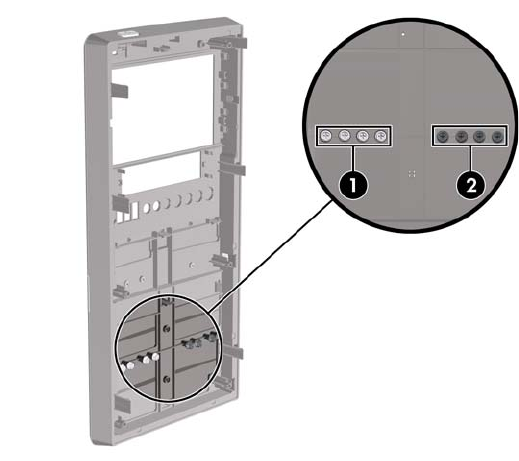

Figure 14 Extra Drive Retainer Screws Location
