4–28 Maintenance and Service Guide
Removal and replacement procedures

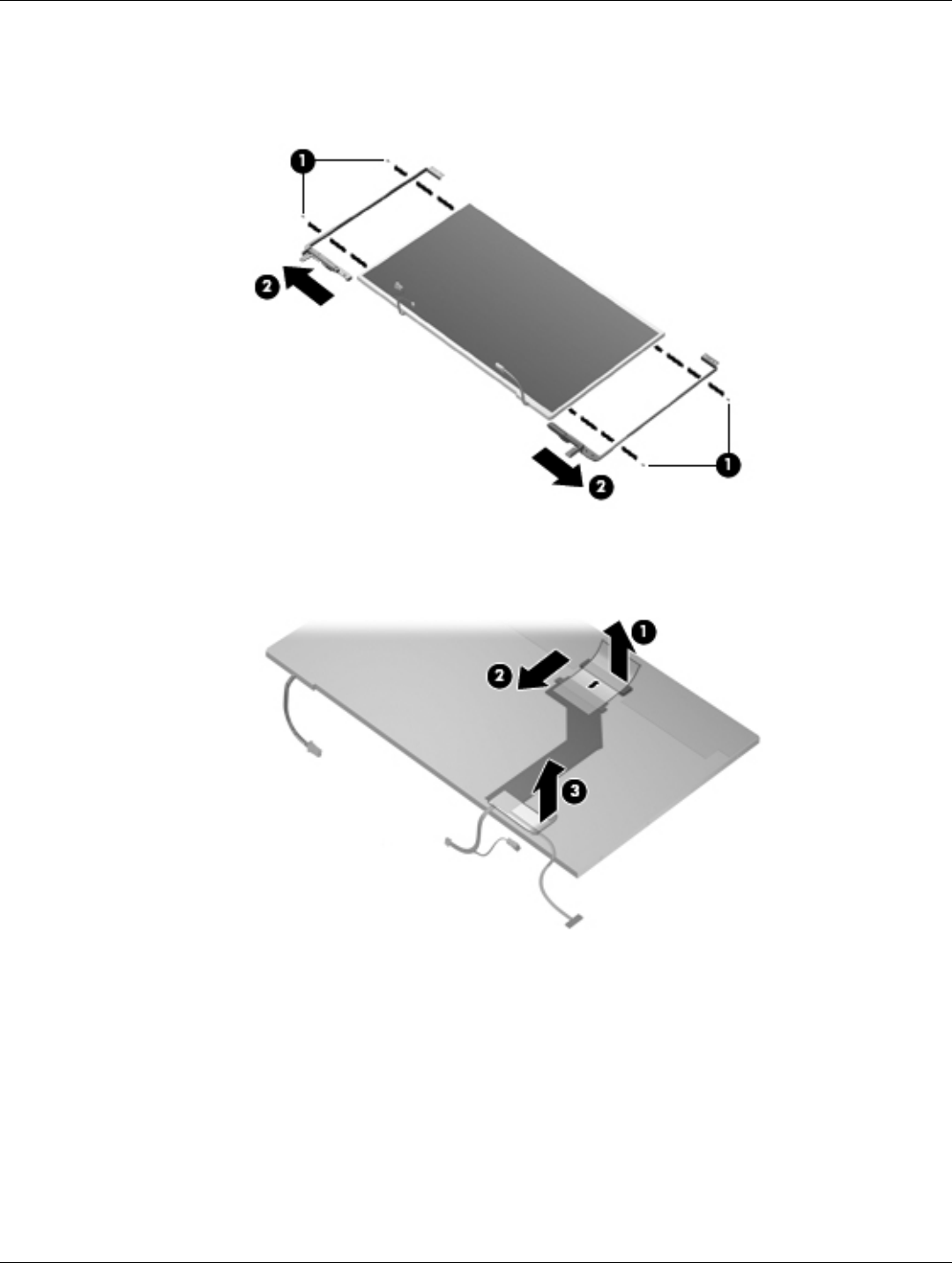

11. If it is necessary to replace the display hinges, remove the two Phillips PM2.0×3.0 screws 1 that secure each
display hinge to the display panel.
12. Remove the display hinges 2. The display hinges are available in the Display Hinge Bracket Kit, spare part
574556-001. The display hinge screws are available in the Display Screw Kit, spare part number 512362-001.
13. If it is necessary to remove the display panel cable, remove the adhesive reinforcement strip 1 from the display
panel cable, and disconnect the display panel cable 2. Remove the tape 3 that secures the cable to the display
panel. The display panel cable is available using spare part number 574554-001.
Reverse this procedure to reassemble and install the display assembly.
