4–26 Maintenance and Service Guide
Removal and replacement procedures

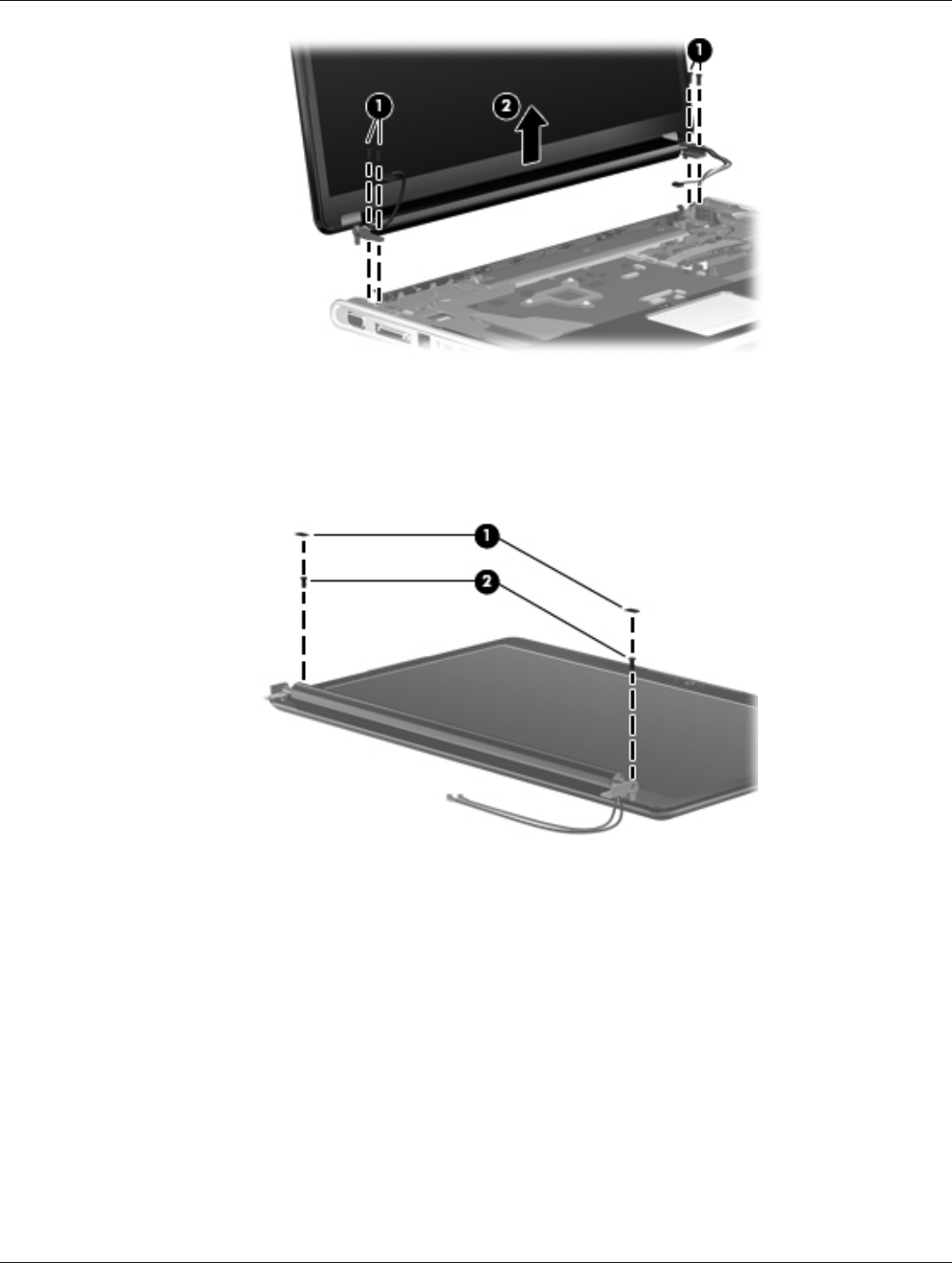

6. If it is necessary to replace the display bezel or any of the display assembly internal components, remove the
following screw covers and screws:
1 Two Mylar screw covers on the display bezel bottom edge. The display rubber screw covers are included in
the Display Rubber Kit, spare part number 512361-001.
2 Two Phillips PM2.5×6.5 screws.
7. Flex the inside edges of the top edge 1, the left and right sides 2, and the bottom edge of the display bezel 3
until the bezel disengages from the display enclosure.
8. Remove the display bezel 4. The display bezel is available using the spare part number 512364-001.
