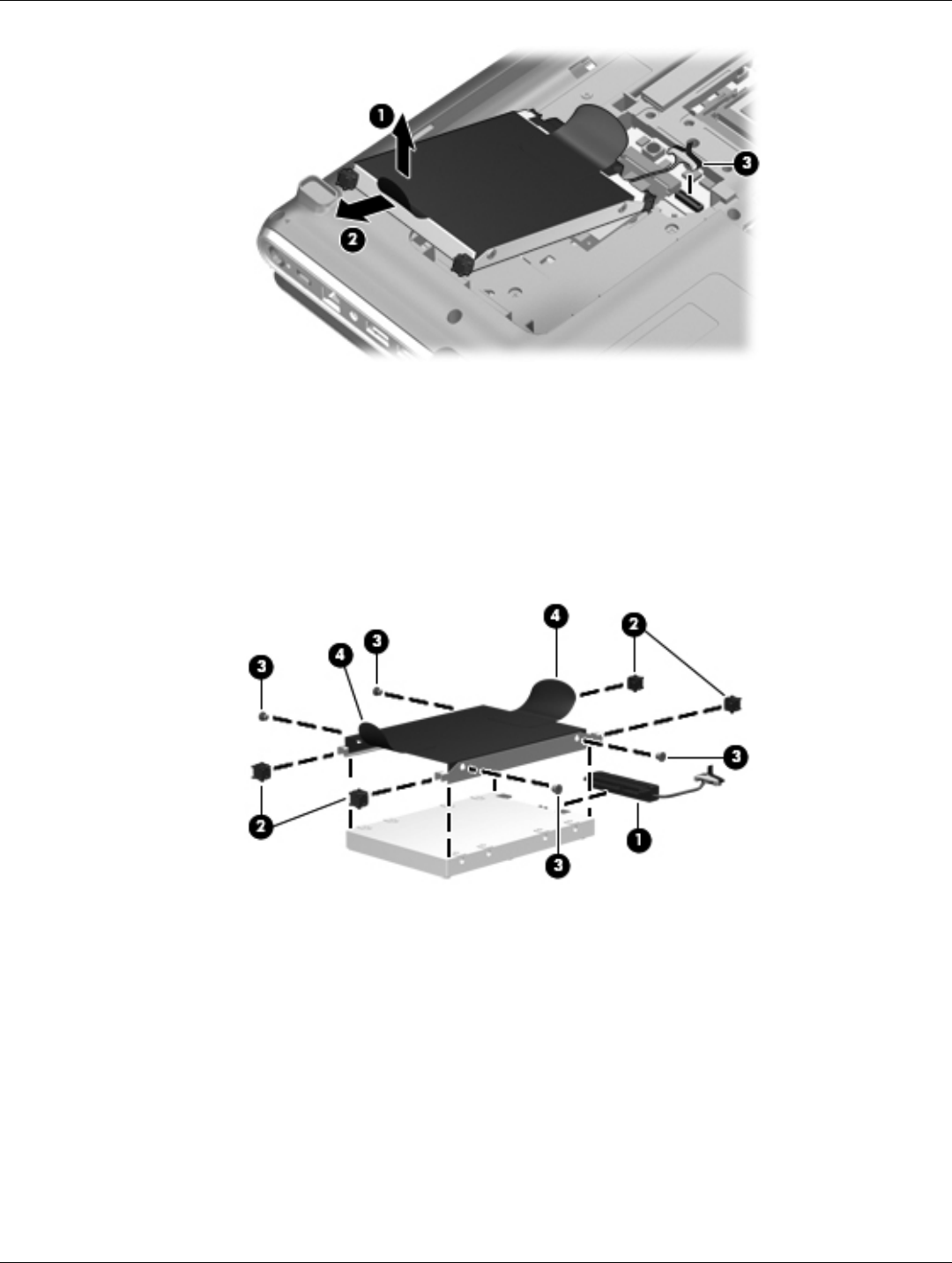

6. Remove the hard drive from the hard drive bay.
7. If it is necessary to replace the hard drive bracket or any of the hard drive bracket components, remove the
following:
1 Hard drive adapter cable
2 Four rubber isolators
3 Four Phillips PM3.0×3.5 screws that secure the hard drive bracket rails and Mylar cover to the hard drive
4 Left and right hard drive bracket rails with Mylar cover
Reverse this procedure to reassemble and install the hard drive.
