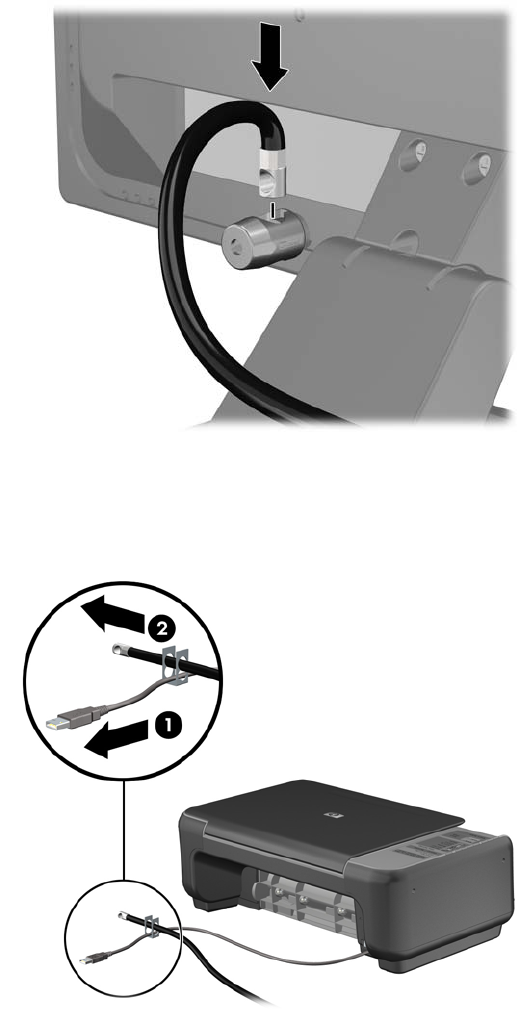

3. Slide the security cable through the hole in the Cable lock on the rear of the monitor.
Figure 3-44 Securing the Monitor
4. Use the bracket provided in the kit to secure other peripheral devices by laying the device cable
across the center of the bracket (1) and inserting the security cable through one of the two holes
in the bracket (2). Use the hole in the bracket that best secures the peripheral device cable.
Figure 3-45 Securing Peripheral Devices (Printer Shown)
Installing a Security Lock 77
