8. If removing an optical drive, disconnect the power cable (1) and data cable (2) from the rear of
the optical drive.
CAUTION: When removing the cables, pull the tab or connector instead of the cable itself to
avoid damaging the cable.

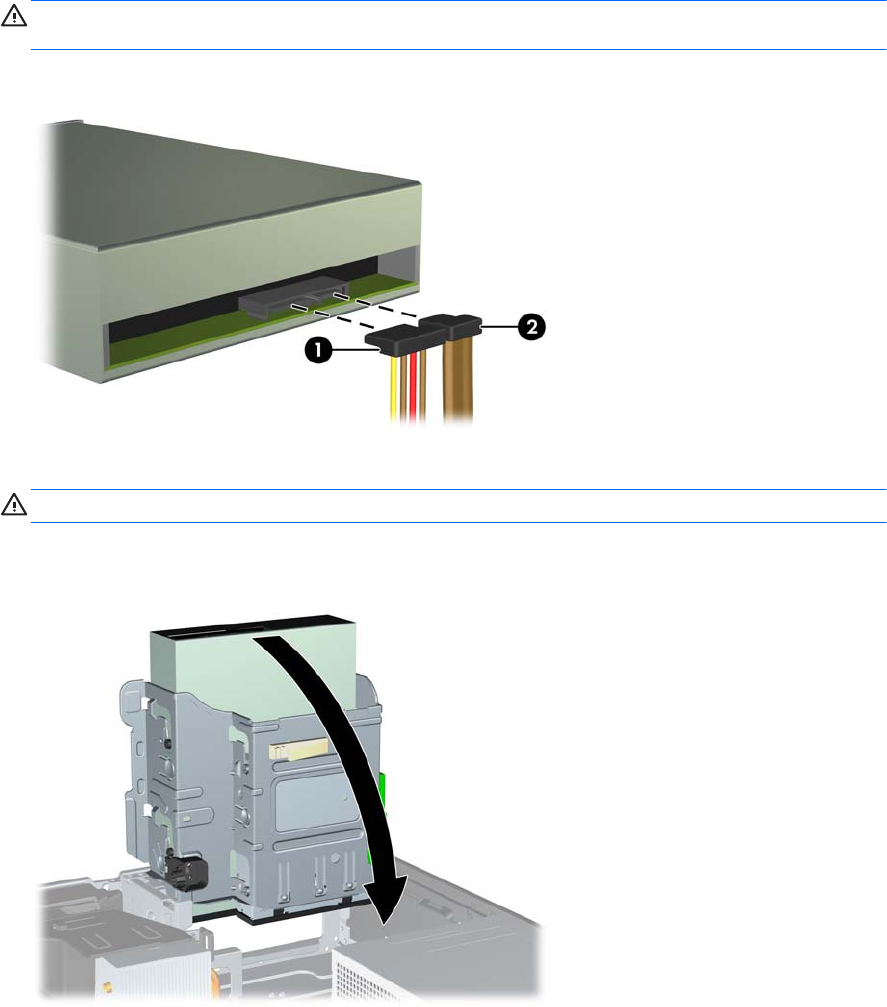

Figure 3-19 Disconnecting the Power and Data Cables
9. Rotate the drive cage back down to its normal position.
CAUTION: Be careful not to pinch any cables or wires when rotating the drive cage down.
Figure 3-20 Rotating the Drive Cage Down
Installing and Removing Drives 63
