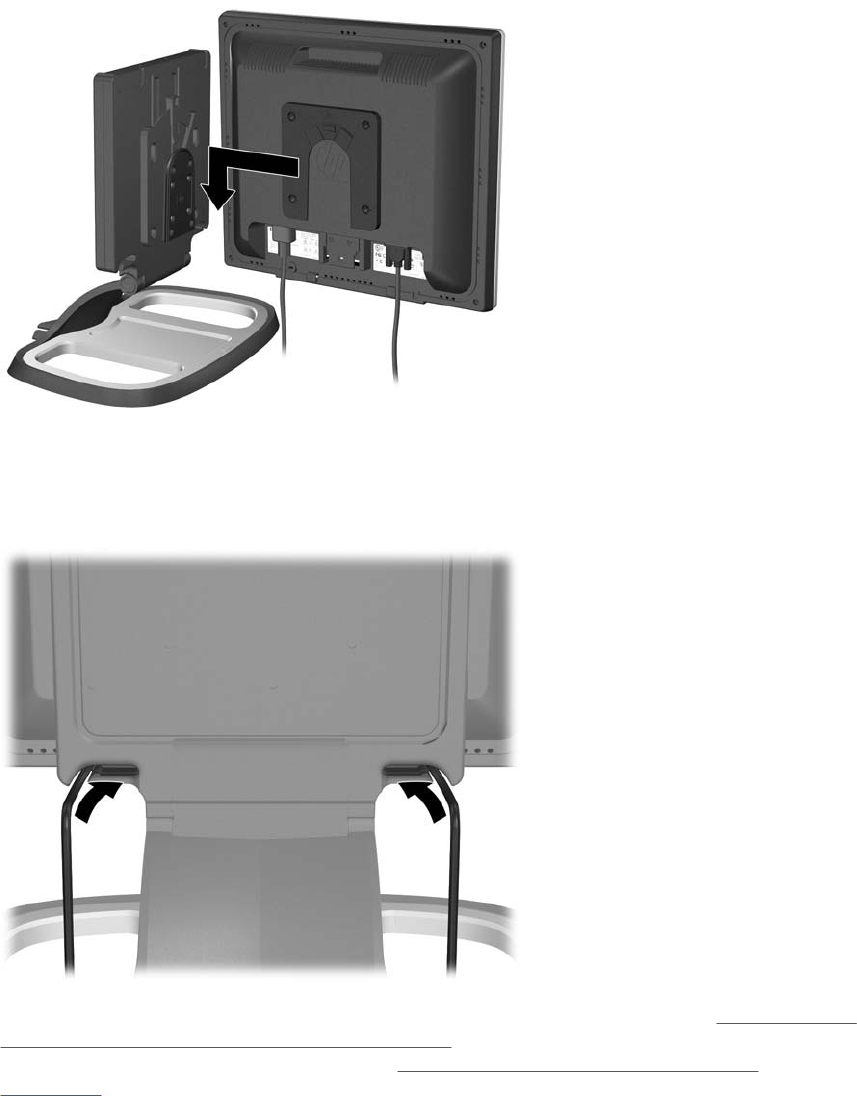

2. Place the stand on a desktop or table and push the neck on the stand down to its lowest position.
Slide the monitor all the way onto the stand so that the Quick Release mounting device emits an
audible click and is locked in place.
Figure 3-2 Installing the Monitor on the Stand
3. Route the monitor VGA and power cables through the cable guides at the bottom corners of the
mounting panel (select models).
Figure 3-3 Routing Monitor VGA and Power Cables
4. To install an HP USDT computer on the rear of the stand, follow the procedure in Installing an HP
Ultra-slim Desktop (USDT) on the Stand on page 7. To install an HP Thin Client computer on
the rear of the stand, follow the procedure in
Installing an HP Thin Client on the Stand
on page 11.
