3. Remove the adhesive strip that secures the thermal sensor to the top of the hard drive (1) and
move the thermal sensor away from the carrier (2).

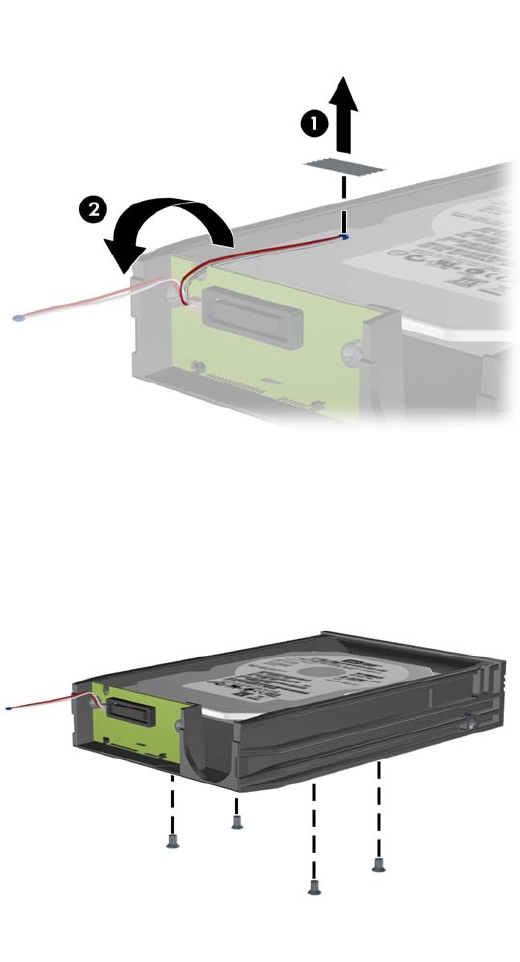

Figure B-2 Removing the Thermal Sensor
4. Remove the four screws from the bottom of the hard drive carrier.
Figure B-3 Removing the Security Screws
86 Appendix B Removing and Replacing a Removable 3.5-inch SATA Hard Drive
