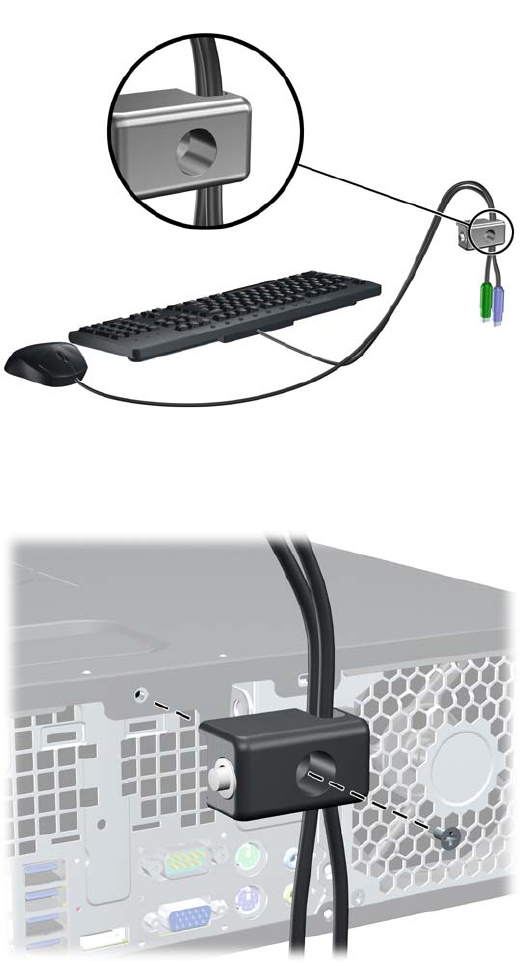

5. Thread the keyboard and mouse cables through the computer chassis lock.
Figure 3-46 Threading the Keyboard and Mouse Cables
6. Screw the lock to the chassis in the thumbscrew hole using the screw provided.
Figure 3-47 Attaching the Lock to the Chassis
78 Chapter 3 Small Form Factor (SFF) Hardware Upgrades
