8. Rotate the power supply to its upright position. The hard drive is located beneath the power
supply.

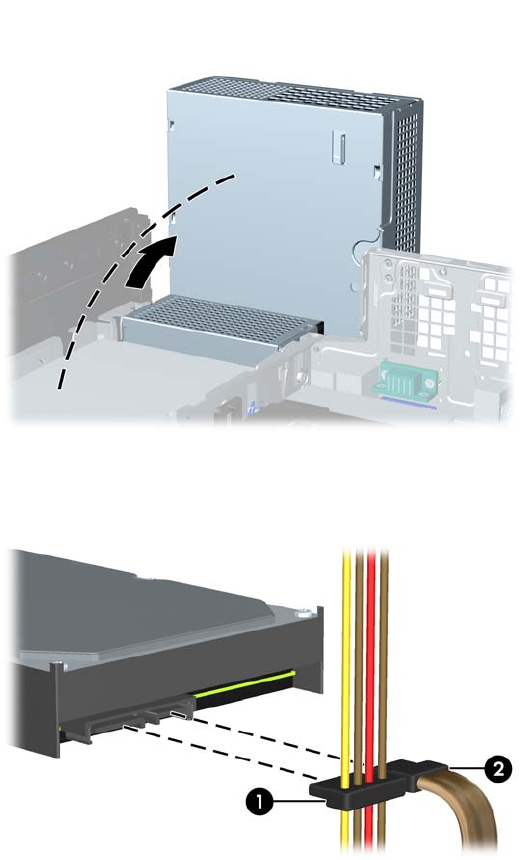

Figure 3-34 Raising the Power Supply
9. Disconnect the power cable (1) and data cable (2) from the back of the hard drive.
Figure 3-35 Disconnecting the Hard Drive Cables
72 Chapter 3 Small Form Factor (SFF) Hardware Upgrades
