6. Remove the computer access panel.
WARNING! To reduce risk of personal injury from hot surfaces, allow the internal system
components to cool before touching.
7. Rotate up the internal drive bay housing to access the memory module sockets on the system
board.

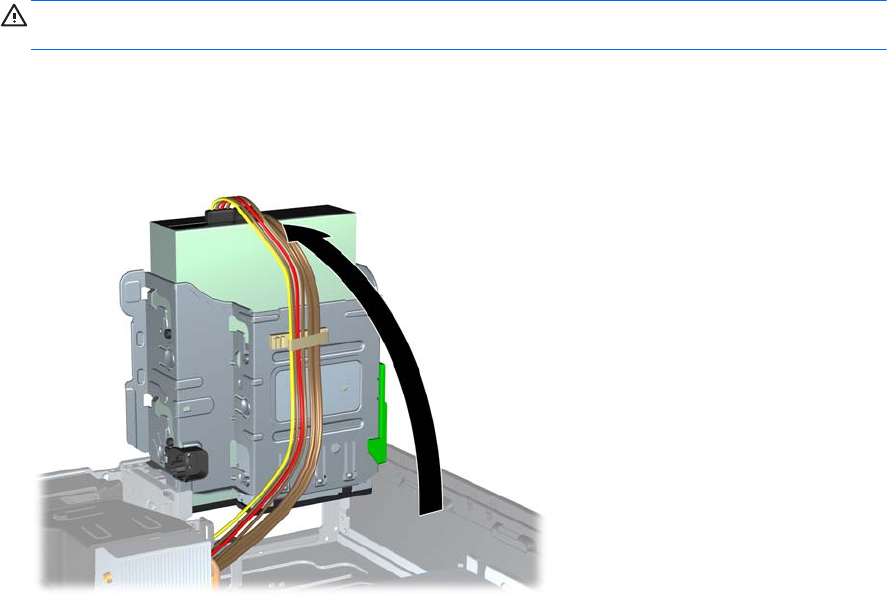

Figure 3-8 Rotating the Drive Cage Up
Installing Additional Memory 53
