8. Install the screw through the interior of the front of the chassis into the front bezel. The screw
hole is located toward the middle of the right edge of the chassis between the hard drive bay and
speaker.

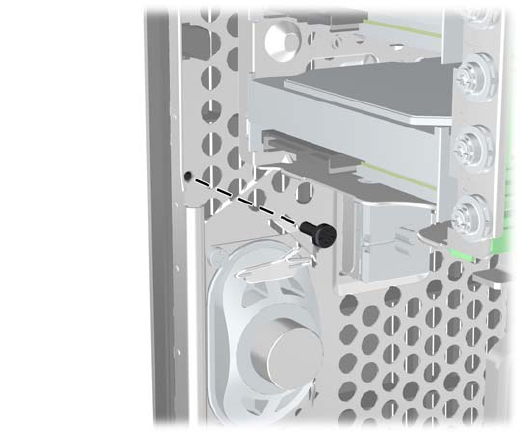

Figure 2-43 Installing the Front Bezel Security Screw
9. Replace the access panel.
10. Reconnect the power cord and turn on the computer.
11. Lock any security devices that were disengaged when the access panel was removed.
