b. If you are removing a media card reader, disconnect the USB cable from the system board.

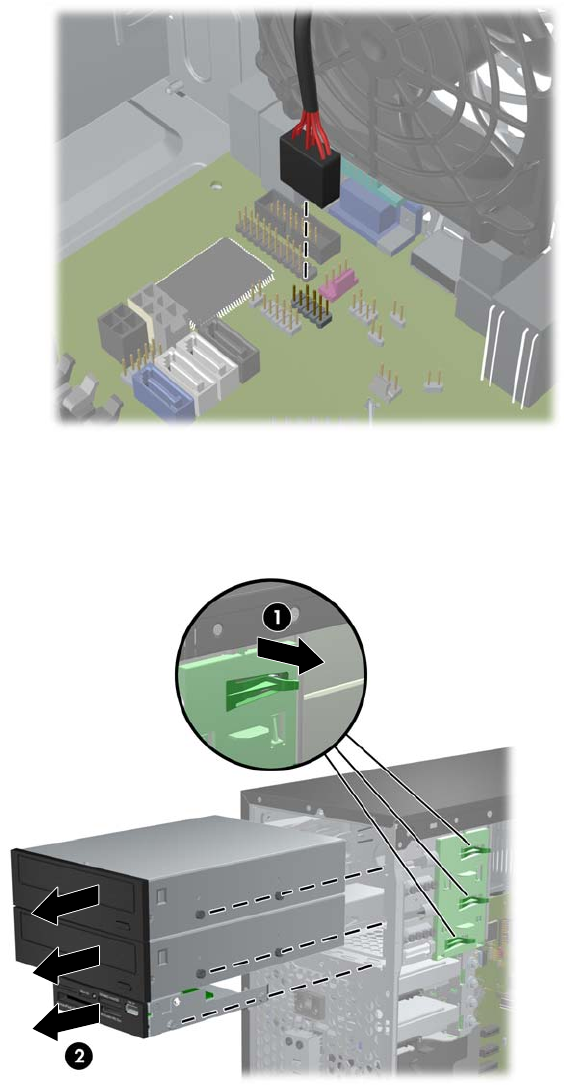

Figure 2-18 Disconnecting the Media Card Reader USB Cable
7. A latch drive bracket with release tabs secures the drives in the drive bay. Lift the release tab on
the latch drive bracket (1) for the drive you want to remove, then slide the drive from its drive bay
(2).
Figure 2-19 Removing the Drives
28 Chapter 2 Microtower (MT) Hardware Upgrades
