14. Replace the computer access panel.
15. Reconnect the power cord and turn on the computer.
16. Lock any security devices that were disengaged when the access panel was removed.
17. Reconfigure the computer, if necessary.
Drive Positions

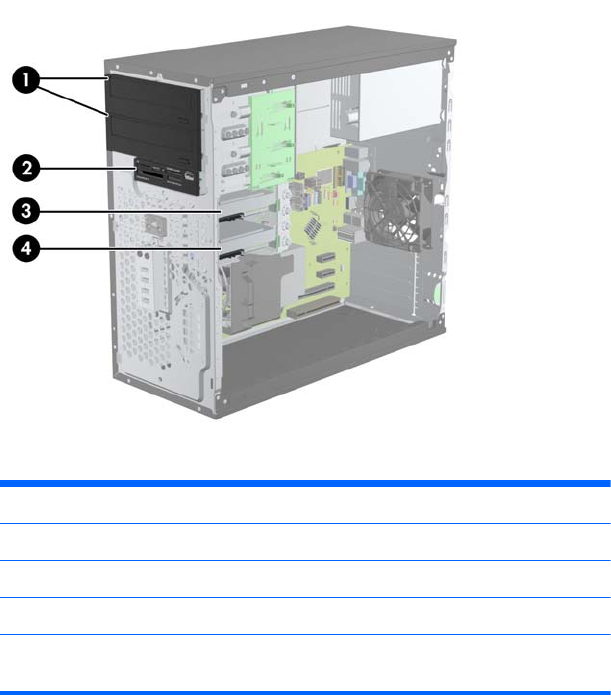

Figure 2-15 Drive Positions
Table 2-2 Drive Positions
1 Two 5.25-inch drive bays for optional drives (optical drives shown)
2 One 3.5-inch drive bay for optional drive (media card reader shown)
3 Secondary 3.5-inch internal hard drive bay for optional hard drive
4 Primary 3.5-inch internal hard drive bay
NOTE: The drive configuration on your computer may be different than the drive
configuration shown above.
To verify the type and size of the storage devices installed in the computer, run Computer Setup.
24 Chapter 2 Microtower (MT) Hardware Upgrades
