10. If you are not installing a new expansion card, install an expansion slot cover to close the open
slot.
CAUTION: After removing an expansion card, you must replace it with a new card or
expansion slot cover for proper cooling of internal components during operation.
11. To install a new expansion card, hold the card just above the expansion socket on the system
board then move the card toward the rear of the chassis so that the bracket on the card is
aligned with the open slot on the rear of the chassis. Press the card straight down into the
expansion socket on the system board.

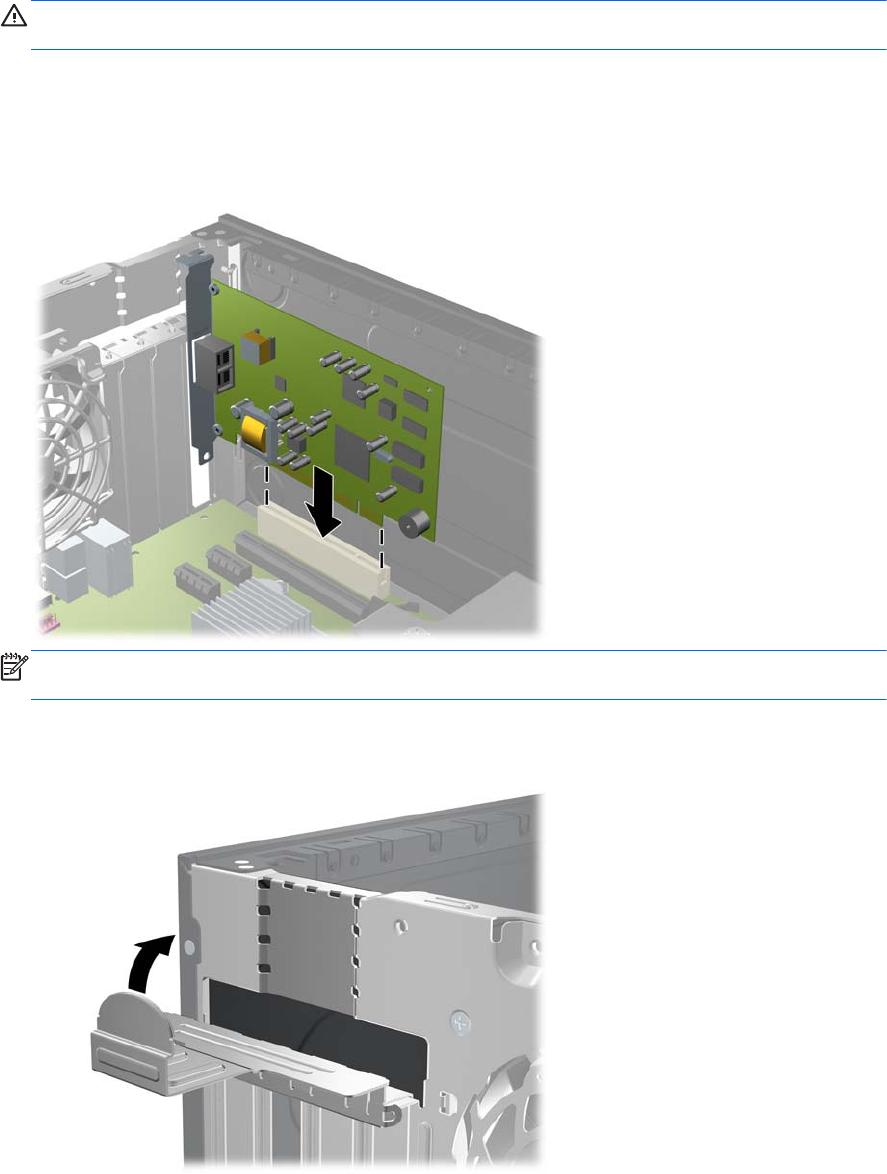

Figure 2-13 Installing an Expansion Card
NOTE: When installing an expansion card, press firmly on the card so that the whole
connector seats properly in the expansion card slot.
12. Rotate the slot cover retention latch back in place to secure the expansion card.
Figure 2-14 Closing the Expansion Slot Retainer
13. Connect external cables to the installed card, if needed. Connect internal cables to the system
board, if needed.
