To install a display panel, reverse the removal procedures.

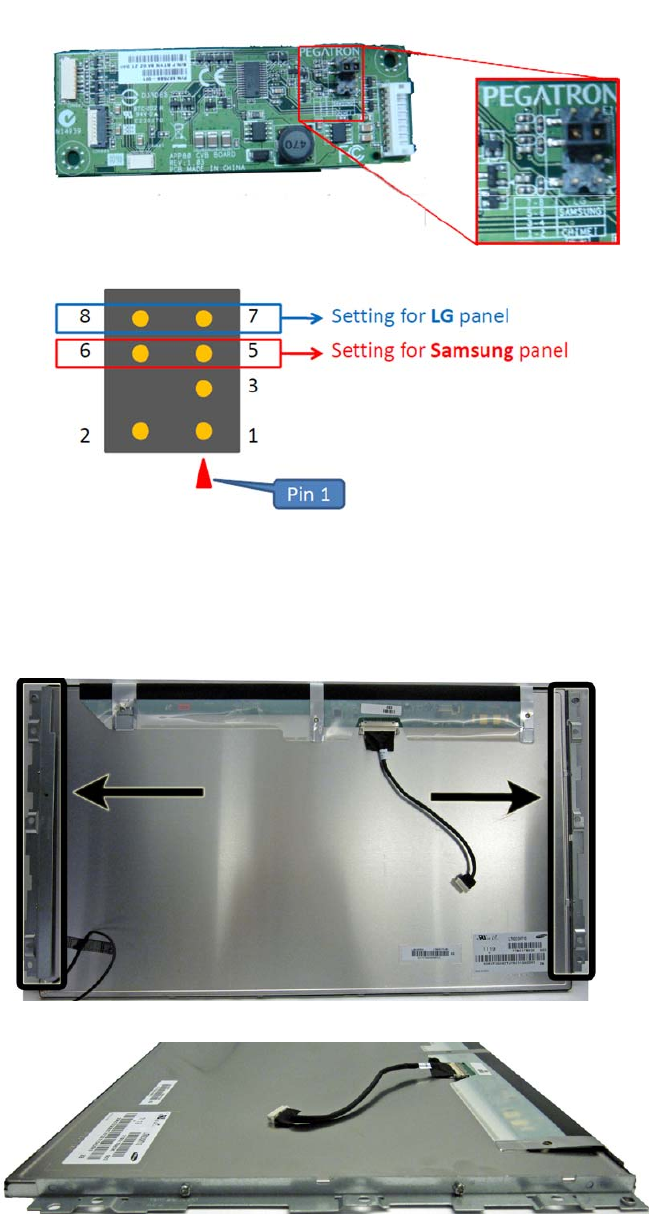

The following images show how the brackets should be installed on Samsung panels. Each bracket is
secured to the side of the panel with two Torx screws.
Figure 6-60 Samsung panel bracket locations
Figure 6-61 Samsung panel bracket – left side
Display Panel 79
