15. If removing the LG panel, lift the display panel from the frame.
If removing the Samsung panel, remove the brackets from the display panel.

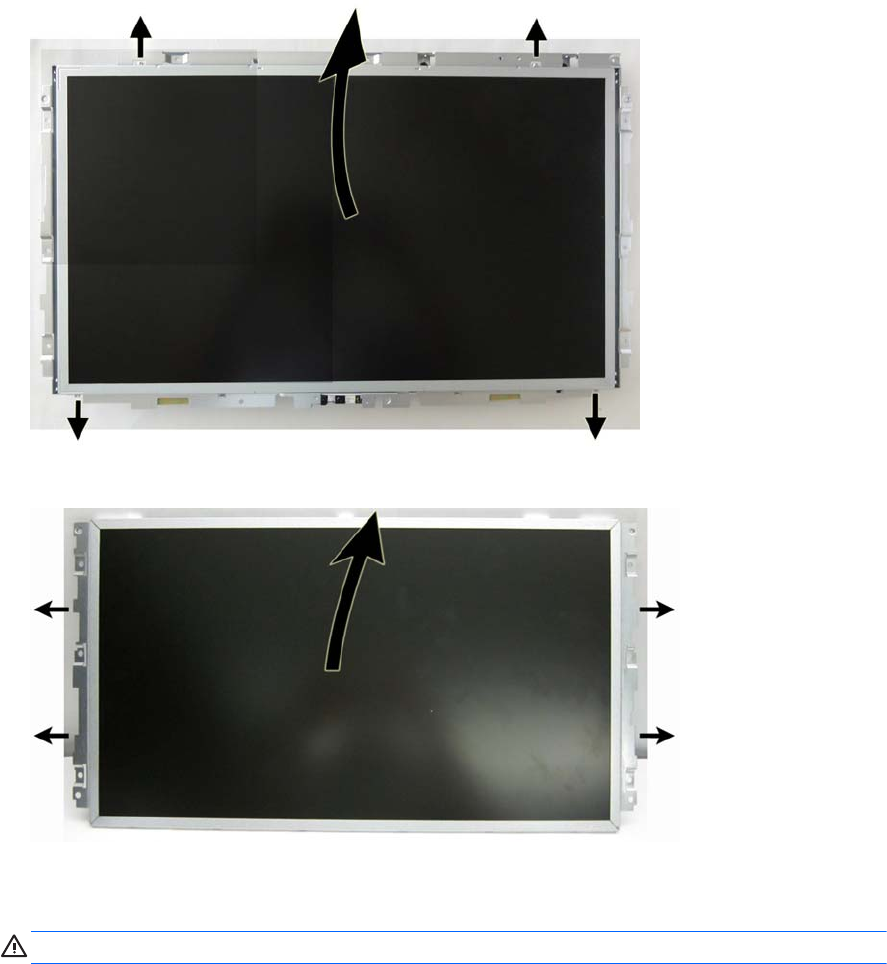

Figure 6-58 Removing the display panel – LG panel
Figure 6-59 Removing the display panel – Samsung panel
16. Be sure to correctly position the jumpers on the converter board for the installed display panel,
as follows:
CAUTION: Incorrect jumper placement can result in damage to the converter board.
●
LG panel: pins 8 & 7
●
Samsung panel: pins 6 & 5
78 Chapter 6 Removal and Replacement Procedures All-in One (AIO) Chassis
