To remove the display panel:
1. Prepare the computer for disassembly (see
Preparing to Disassemble the Computer
on page 29).
2. Remove the center access panel (see
Center Access Panel on page 32).
3. Remove the memory access panel (see
Memory Access Panel on page 34).
4. Remove the memory module (see
Memory on page 42).
5. Remove the drive access panel (see
Drive Access Panel on page 35).
6. Remove the stand (see
Stand on page 33).
7. Remove the optical drive (see
Optical Drive on page 37).
8. Remove the top panel (see
Top Panel on page 45).
9. Remove the rear cover (see
Rear Cover on page 48).
10. Remove the system board cover (see
System Board Cover on page 49).
11. Remove the power switch assembly cable. You do not have to remove the remaining cables.
12. Remove the front bezel (see
Front Bezel on page 75).

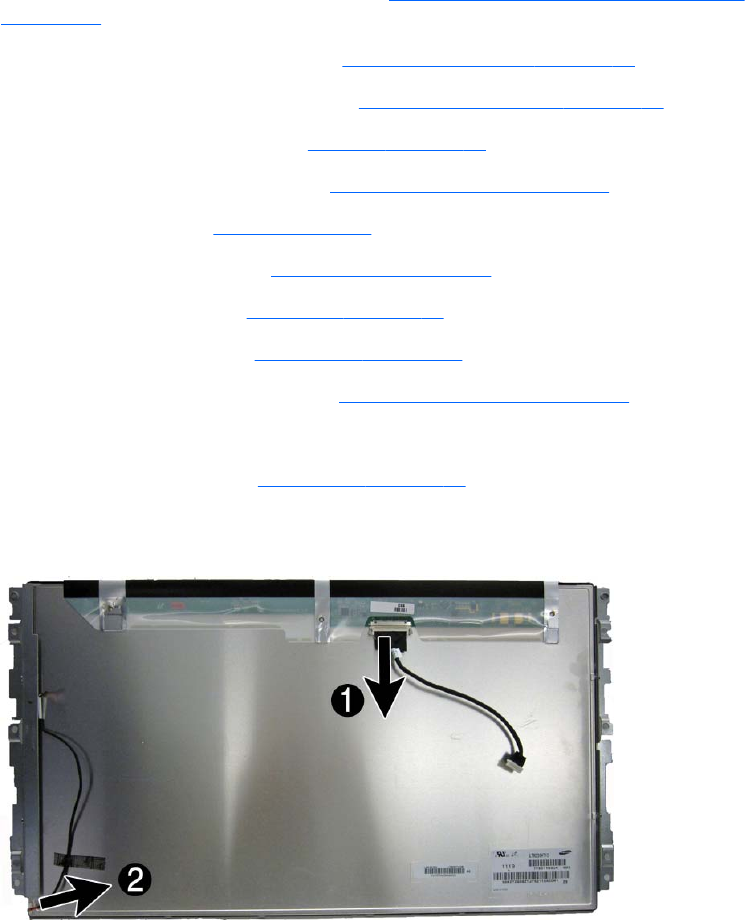

13. Disconnect the display cable (1) and the backlight cable (2) from the display panel.
Figure 6-57 Removing the display cable and backlight cables from the display panel
14. Remove the four silver Torx screws that secure the display panel to the frame or brackets.
The LG panel mounts to a large frame using four screws - two on top, two on the bottom.
The Samsung panel mounts to two small brackets, one on each side. Each bracket is secured
by two screws.
Display Panel 77
