System Board Cover
The system board cover protects the system board. It is secured with six Torx screws.

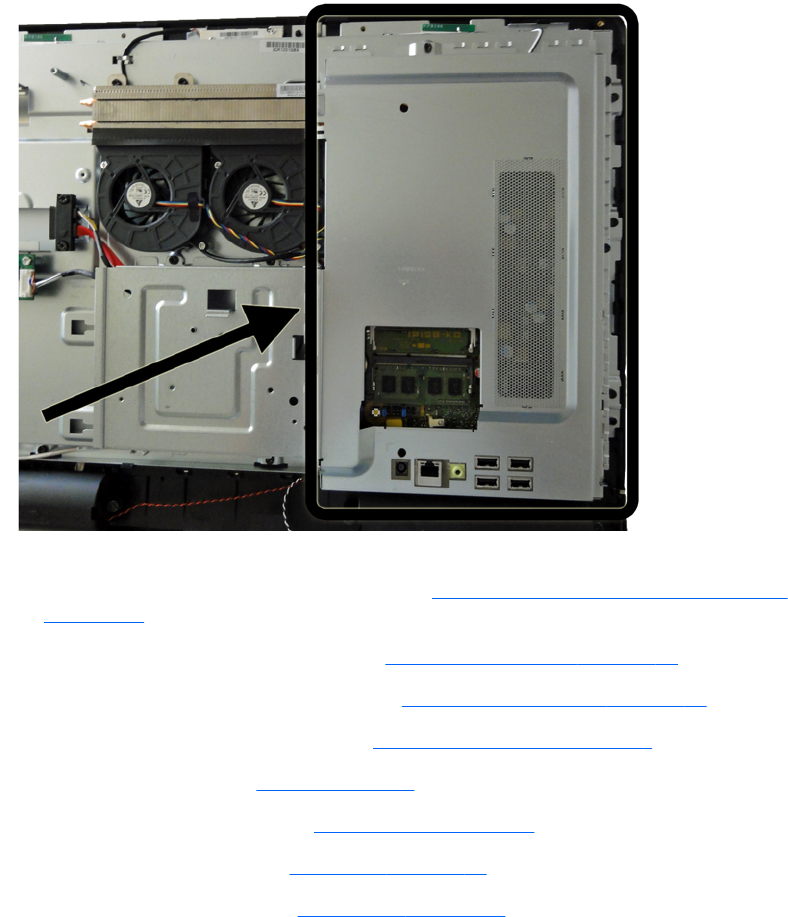

Figure 6-27 System board cover location
To remove the system board cover:
1. Prepare the computer for disassembly (see
Preparing to Disassemble the Computer
on page 29).
2. Remove the center access panel (see
Center Access Panel on page 32).
3. Remove the memory access panel (see
Memory Access Panel on page 34).
4. Remove the drive access panel (see
Drive Access Panel on page 35).
5. Remove the stand (see
Stand on page 33).
6. Remove the optical drive (see
Optical Drive on page 37).
7. Remove the top panel (see
Top Panel on page 45).
8. Remove the rear cover (see
Rear Cover on page 48).
System Board Cover 49
