Webcam Module
The webcam module is located at the top of the computer beneath the top panel. It is secured with
two silver Phillips screws and has one connector.

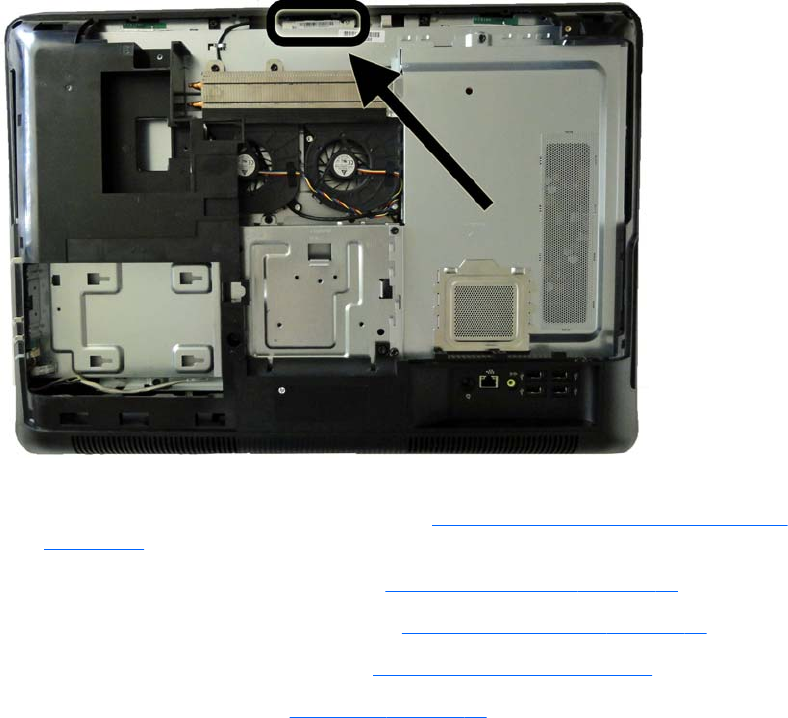

Figure 6-24 Webcam module location
To remove the webcam module:
1. Prepare the computer for disassembly (see
Preparing to Disassemble the Computer
on page 29).
2. Remove the center access panel (see
Center Access Panel on page 32).
3. Remove the memory access panel (see
Memory Access Panel on page 34).
4. Remove the drive access panel (see
Drive Access Panel on page 35).
5. Remove the top panel (see
Top Panel on page 45).
6. Remove the two silver Phillips screws (1) that secure the webcam module to the computer.
7. Lift the webcam module as much as the cable allows, and then disconnect the cable from the
module (2).
46 Chapter 6 Removal and Replacement Procedures All-in One (AIO) Chassis
