NOTE: The system will not operate properly if you install unsupported SODIMMs.
There are two memory sockets on the system board located behind the memory access panel. To
remove or install memory modules:
To remove a memory module:
1. Prepare the computer for disassembly (see
Preparing to Disassemble the Computer
on page 29).
2. Remove the center access panel (see
Center Access Panel on page 32).
3. Remove the memory access panel (see
Memory Access Panel on page 34).

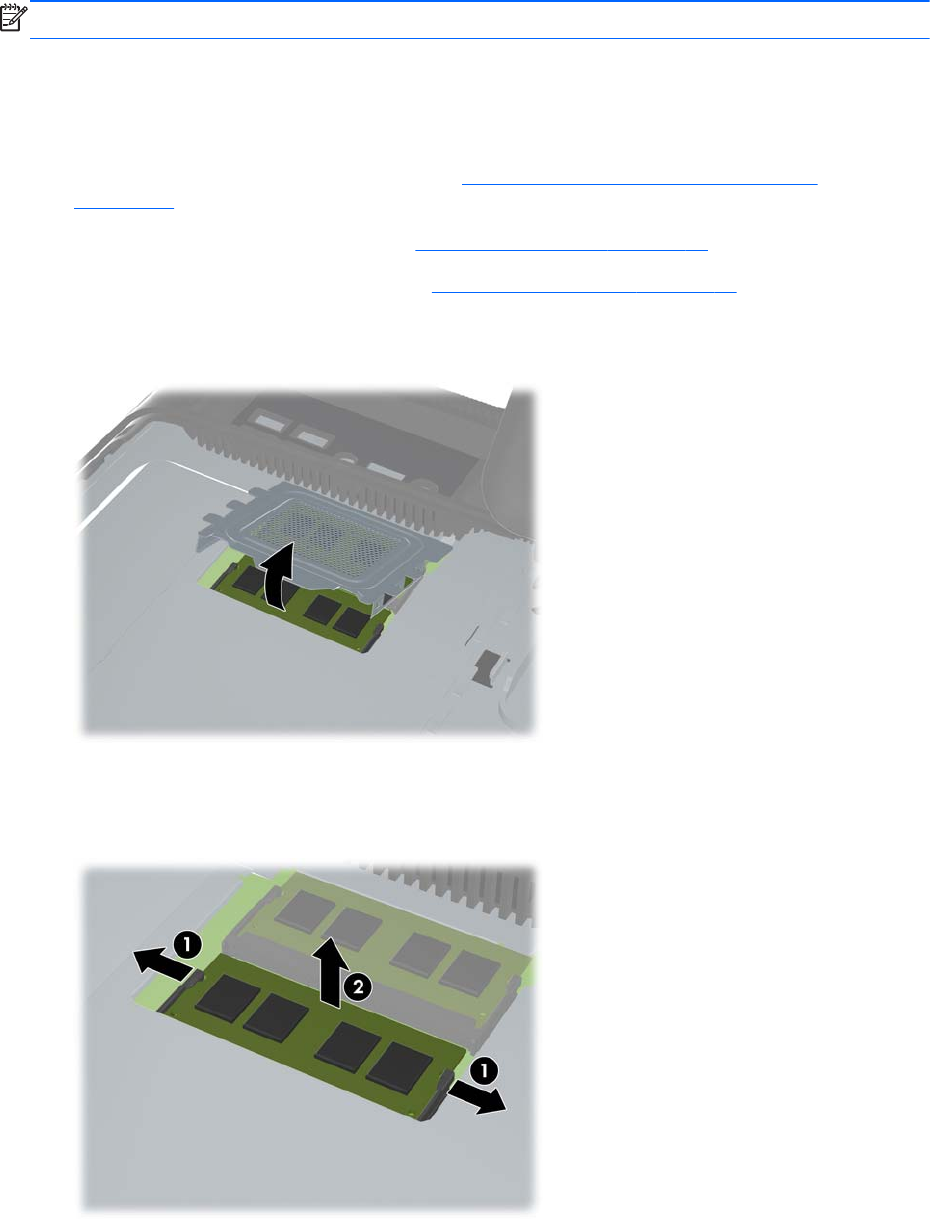

4. Pull upward on the two raised tabs on the memory cover and lift the cover off the rear panel.
Figure 6-19 Removing the memory cover
5. To remove a memory module, press outward on the two latches on each side of the SODIMM
(1) then pull the SODIMM out of the socket (2).
Figure 6-20 Removing a memory module
Memory 43
