Hard Drive
The hard drive is located under the drive access panel on the left side of the computer (viewed from
behind). The drive is secured with one captive Torx screw and is housed in a removable cage.

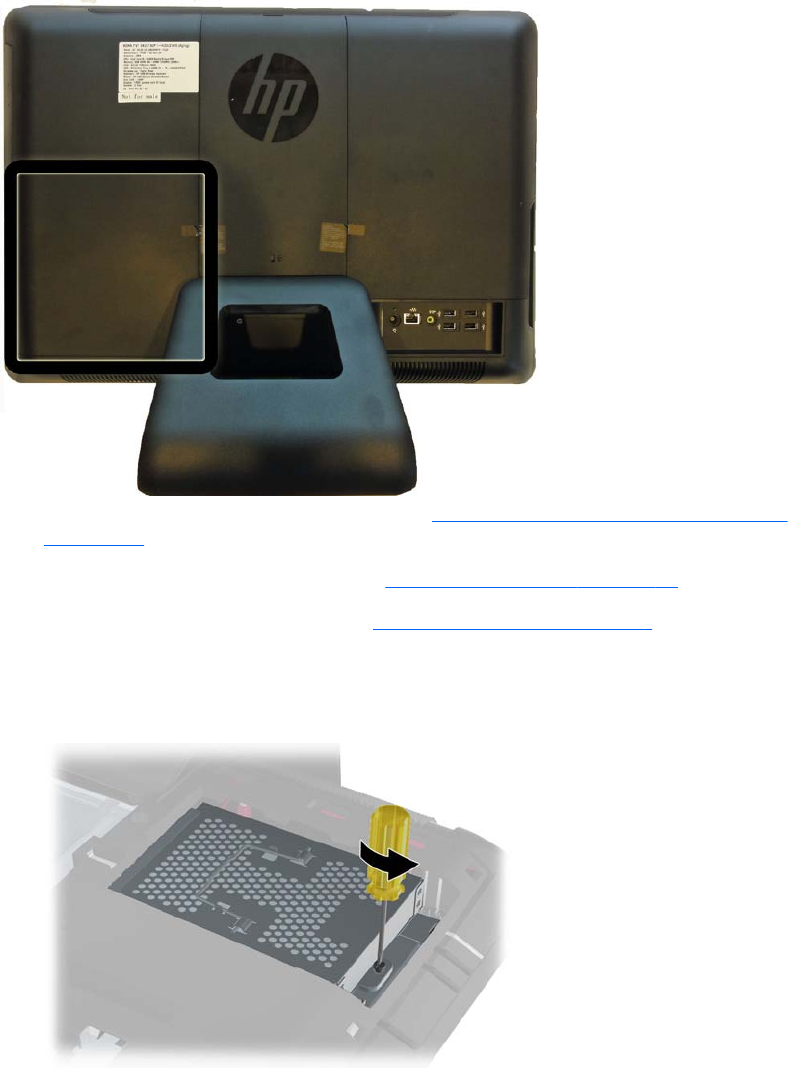

Figure 6-13 Hard drive location
1. Prepare the computer for disassembly (see Preparing to Disassemble the Computer
on page 29).
2. Remove the center access panel (see
Center Access Panel on page 32).
3. Remove the drive access panel (see
Drive Access Panel on page 35).
4. Loosen the captive Torx screw next to the front of the drive that secures the drive to the
computer. You can use either a Torx or slotted screwdriver to loosen the screw.
Figure 6-14 Loosening the hard drive security screw
