Center Access Panel
The center access panel is located above the stand. You must remove it to remove the drive cover
and memory cover.

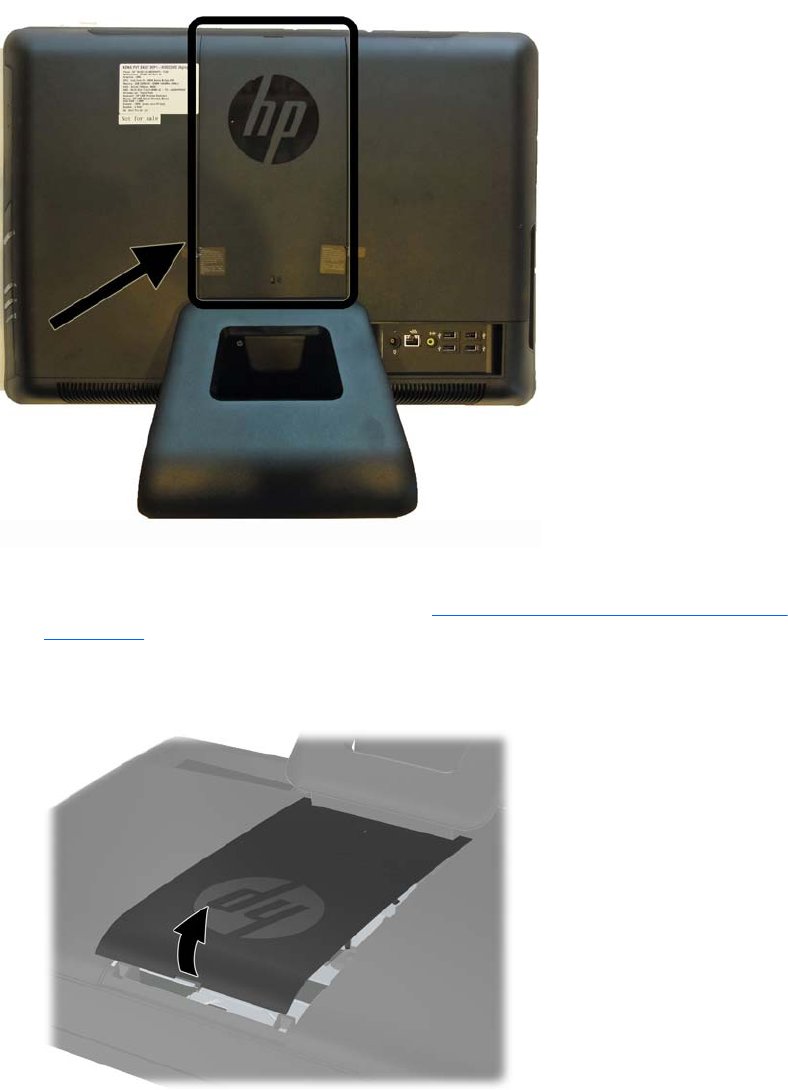

Figure 6-3 Center access panel location
To remove the center access panel:
1. Prepare the computer for disassembly (see
Preparing to Disassemble the Computer
on page 29).
2. Pull outward on the panel at the slot on the top edge of the panel.
Figure 6-4 Removing the center access panel
To replace the center access panel, reverse the removal procedures.
32 Chapter 6 Removal and Replacement Procedures All-in One (AIO) Chassis
