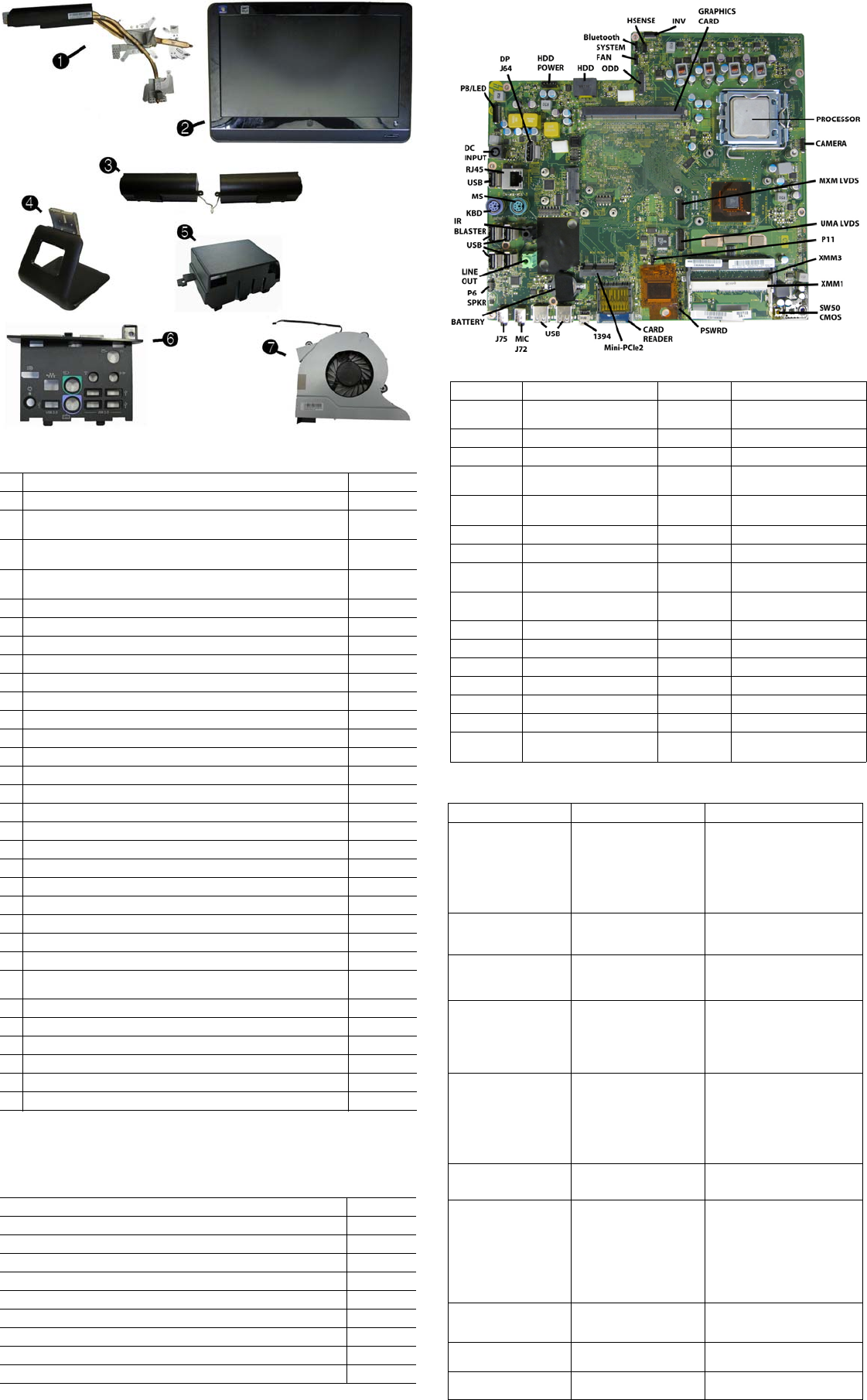

HP Compaq 6000 Pro AIO Illustrated Parts & Service Map 628500-003 page 2
System Board
Miscellaneous Parts
1 Heat sink (thermal module), MXM graphics not spared
* Heat sink (thermal module), UMA graphics not spared
2 Display panel, 21.5-inch, non-glare, AUO (includes cable and
inverter; does not include bezel)
633225-001
* Display panel, 21.5-inch, CMO (includes cable and inverter; does
not include bezel)
657230-001
* Display panel, 21.5-inch, SMG (includes cable and inverter; does
not include bezel)
657231-001
3 Speaker, left 644382-001
3 Speaker, right 644383-001
4 Stand 643141-001
5 Port cover 643148-001
6 Rear I/O cover 643160-001
7 Fan/blower 644381-001
* Small fan/blower 733734-001
* Bezel, display 662912-001
* Front bezel, computer 679217-001
* Optical drive bezel 654297-001
* Stand cover 643144-001
* Hard drive cover 643142-001
* Memory cover 643143-001
* Postponement door (part of rear cover) 643156-001
* Tape, used to ground the WLAN antenna 643147-001
* Power control assembly 643151-001
* Rear cover 643155-001
* Power supply, 150W, external 618019-001
* Power supply, 180W, external 618020-001
* Remote control for use in North America 642086-001
* Remote control for use in the Asia/Pacific and Latin American
regions
642181-001
* Mouse, USB, Jack Black 570580-001
* Mouse, PS/2, optical 609250-001
* Mouse, optical, Carbon 444740-001
* Mouse, USB, optical, Portia 621416-001
* Mouse, wireless, includes dongle 621417-001
* Mouse, washable 619580-001
*Not shown
Cables (not illustrated)
Power button cable 643145-001
Optical drive eject/brightness cable 643146-001
Hood sensor cable 643149-001
Camera to MPCA cable 643150-001
Display cable 643157-001
Inverter power cable 643158-001
Optical drive SATA cable 643159-001
Bluetooth/USB cable 643161-001
Hard drive SATA cable 658144-001
DisplayPort (DP) to HDMI adapter 617450-001
System Board Connectors and Jumpers (component location may vary)
DP, J64 DisplayPort connector PSWRD System password header
HDD
POWER
Hard drive power connec-
tor
CARD
READER
Media card reader con-
nector
HDD Hard drive connector 1394 1394 port
ODD Optical drive connector USB USB connectors
SYSTEM
FAN
System fan connector MIC, J72 Microphone connector
Bluetooth Bluetooth module connec-
tor
J75 Headphone jack
HSENSE Hood sensor connector BATTERY RTC battery socket
INV Inverter board connector P6, SPKR Speaker jack
GRAPHICS
CARD
Graphics card connector
LINE OUT Headphone jack
PROCES-
SOR
CPU USB USB connectors
CAMERA Webcam connector IR BLASTER IR extended connector
MXM LVDS MXM display connector KBD PS/2 keyboard connector
UMS LVDS UMA display connector MS PS/2 mouse connector
P11 Auxiliary audio connector
USB USB connector
XMM1 Memory socket 1 RJ-45 Network connector
XMM3 Memory socket 2 DC INPUT AC adapter connector
SW50,
CMOS
CMOS password header PB/LED Power button/LED connec-
tor
Common POST Error Messages
Screen Message Probable Cause Recommended Action
101-Option ROM Error System ROM or expansion
board option ROM check-
sum.
1. Verify ROM, reflash if required
2. Remove any recently added
cards to see if problem
remains.
3. Clear CMOS. If message
disappears, may be problem
with card.
4. Replace system board
103-System Board
Failure
DMA or timers 1. Clear CMOS memory.
2. Remove expansion boards.
3. Replace system board.
164-Memory Size Error Memory amount has
changed since the last boot
(memory added or
removed).
Press the F1 key to save the
memory changes.
164-Memory Size Error Incorrect memory configu-
ration
1. Run Setup (F10).
2. Make sure memory module(s)
installed properly.
3. If third-party memory added,
test using HP-only memory.
1. Verify proper module type.
201-Memory Size Error RSM failure 1. Ensure memory modules are
correctly installed.
2. Verify proper module type.
3. Remove and replace identified
faulty memory module(s).
4. If error persists after replacing
modules, replace system
board.
214-DIMM Configuration
Warning
Populated DIMM configura-
tion is not optimized
Rearrange the DIMMs so that
each channel has the same
amount of memory.
301-, 304-Keyboard error Keyboard failure. 1. Reconnect keyboard with
system turned off.
2. Check keyboard connection or
keys.
3. Check connector for bent or
missing pins.
4. Replace keyboard.
5. If 304, possible system board
problem.
511-Display Adapter Fail-
ure
CPU Fan no Detected. 1. Reseat CPU fan.
2. Reseat fan cable.
3. Replace CPU fan.
1801-Microcode Patch
Error
Processor not supported by
ROM BIOS.
1. Upgrade BIOS to proper version.
2. Change the processor.
1801-Microcode Patch
Error
Processor is not supported by
ROM BIOS.
1. Upgrade ROM proper version.
2. Change the processor.
